Satellite)
Built in 1974, it is 1,403' (428m) long with a spillway length of 959' (285m). It has two locks, one of which is 1200 x 110. It has a hydraulic height of 51' (15.5m). [
inspection]
A hydroelectric plant was added in 1988. [
wvpress]

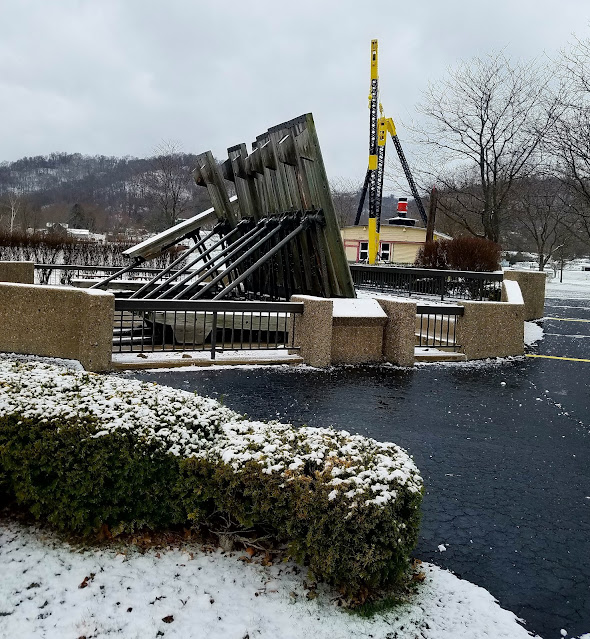

"This modern structure replaces three old wicket-type dams which served river traffic for over 70 years. Several full-size wickets and a workboat, used to operate them, are displayed at the visitor center." [
CorpsLakes]
 |
| AtlasObscura, 1 of several images of the wicket dam exhibit. |
The pin for the sector gear for each of the four gates of the auxiliary lock were replaced starting Nov 16, 2020. This was in preparation for repairing the main lock in 2021 and 2022.
 |
| USACE, Public Domain, Photo by Dawn Powell |
Henry M. Shreve:
 |
1 of 16 photos posted by RiverWorks Discovery on Apr 8, 2023
Our aging infrastructure, which includes our critical locks & dam system,on the inland waterways is under the watchful eye of the United States Army Corps of Engineers. Currently, one such lock, Hannibal, at Mile 126 on the Ohio River is under repair. Here we see the U.S. Army Corps of Engineers, Headquarters towboat M/V EVANICK and crane Barge HENRY M. SHREVE. This flotilla with superstructure and equipment was caught near Ravenswood, West Virginia en route to Hannibal Locks. Now this is a wonderful example of our tax dollars at work keeping our nations cargo moving and our economy humming along! Dwight Hardy: Tested at 605 tons.
Fort Loudoun Lock shared
Some great pics of one of our 3 regional repair fleet units traveling to the next lock for the next major maintenance job! These are some big jobs that require big equipment with heavy lift capacity cranes & derrick boats. Highly skilled trades workers with specialized skills of all kinds make up these crews. Amazing capabilities!
|
Monica Anderson Lee
posted four images with the comment: "2nd flood in the Ohio Valley in a week. Who has the pleasure of waiting for the Hannibal Locks and Dam to open this week?"
 |
| 1 |
 |
2
[Not only did they place the building on a mound of dirt, I presume they installed the concrete barriers to keep floating debris away from the building.] |
 |
| 3 |
 |
| 4 |
USACE, Pittsburgh District
posted five photos with the comment:
The U.S. Army Corps of Engineers Pittsburgh District is tackling a massive $16.6 million rehabilitation at Hannibal Locks and Dam, the busiest lock on the Ohio River. For over 50 years, this crucial infrastructure has kept river commerce flowing, but now it’s getting the upgrade it needs to continue serving the region for decades to come.
Want to know more about how this ambitious project is coming together?
 |
| 1 |
 |
| 2 |
 |
| 3 |
 |
| 4 |
 |
| 5 |
,%20OH%20-%20USGS%20Water%20Data%20for%20the%20Nation.png)
,%20OH%20-%20USGS%20Water%20Data%20for%20the%20Nation.png)
