Canal Street Bridges

20150705 2543, Southwest Quadrant of Bridge

(Bridge Hunter, Bridge Hunter Previous Historic Bridges; Satellite) The above links indicate this 1949 bridge is the longest-spanning pony truss trunnion bascule bridge at 253.8'. That might explain why the part of the truss above the deck is so high. Most bridges I've seen so far of the "Chicago Design" have a truss height at the middle of the bridge comparable to that of the handrail. In this case it is about three times as high.

Google's Street View caught someone walking on the walkway. (Note the person in red about a third from the right.) That person provides scale as to how tall the truss is.

Google Street View

eBook

I had trouble finding pictures of the Scherzer Rolling Lift Bridge that was built in 1903 to replace a jack-knife bridge that was built in 1893 because the eBook reference I had found was from archive.org. Historic Bridges used Google's copy.

eBook

I was using the .pdf copy from archive.org, and it does appear that the clerk making the copy missed the two pages I am interested in. (I verified that the "Single Page Processed JP2 ZIP" file is also missing these two pictures. I then compared the two copies and determined that Google is missing some pictures that archive.org does have. But none of the missing bridges are in Chicago. ) So these two pictures are from the Google copy.

Historic Bridges, 1954 Annual Report of the Department of Public Works

A picture in Historic Bridges that is of particular note is this one of an ocean going boat using the river. It illustrates the importance of replacing the old swing bridges with bascule bridges to remove the pier from the center of the canal.

Digital zoom of picture
to the left

Given that the bridge was locked in the closed position when I took this picture, the position indicator is a little off. It is also quite a coincidence that a scratch on the marker lines up with a debris line in the background.

I have heard of Lawrence's Fish and Shrimp before. Now I know where it is --- southwest of the Canal Street Bridge. The sign on their building advertises "Dock & Dine."

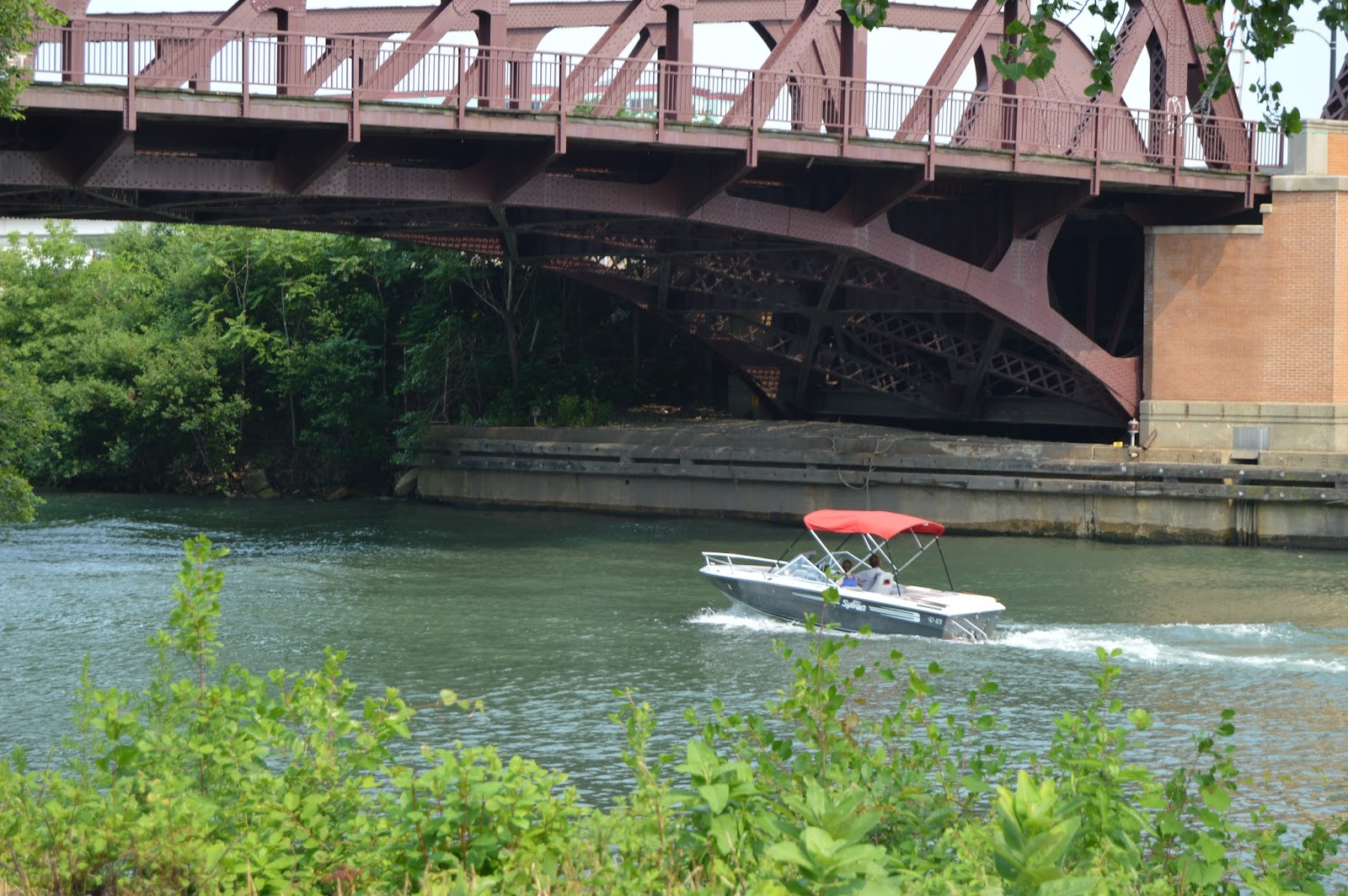

As with all other trunnion bridges I have shot, I can't get a picture underneath that is good enough to show the trunnion bearings or machinery. This picture does show that one reason this pony truss is so high above the deck is because it has such little depth below the deck. The shallow depth maximizes the clearance of the bridge.


Below is a west elevation view. The Canal Street RR Bridge is in the background.

West Elevation

Update:

Patrick McBriarty posted
TBT with the 2nd Canal Street Bridge a Harmon folding-lift built in 1893 in Chicago.

Cortland Street Bridge, City of Chicago, Department of Transportation and predecessor agencies

Judging from the bends in the river, Patrick's picture is the west elevation whereas the CDoT picture is of the east elevation. The caption for the CDoT picture indicates the bridge was removed in 1902 because of maintenance problems and a replacement was not built until 1948. [Actually, it was replaced in 1903 by a Scherzer rolling bridge.] I had to stare at the pictures for a while before I realized the deck really is folded when "raised." The middle cables pull up but the cables to the center reel out so that most of the deck hangs down towards the water. Also, search ChicagoDrawBridges for Harmon for a picture of the first bridge of this design at Weed Street.

MWRD posted
A view to the north showing the South Branch of the Chicago River on August 10, 1900, with a portion of the old Canal Street bridge visible at right.
MWRD posted again
MWRD posted again
[Note the old grain elevator in the right background.]

MWRD posted
A view from a point north of the construction site for a bridge at Canal Street in Chicago, Illinois, on May 29, 1902, looking north at a man standing at a hoist used to operate the bridge construction derrick.
MWRD posted



MWRD posted
 The South Branch of the Chicago River viewed from a dock wall looking southwest toward the Canal Street bridge on June 12, 1900.

MWRD posted
A view from a point north of the construction site for a bridge at Canal Street on May 29, 1902, looking south at bridge construction materials and activity.

William A. Shaffer posted
Canal Street Drawbridge
As the "Cardinal" was departing Chicago, I shot this photo of the Canal Street Drawbridge over the Chicago River. (Photo by William A. Shaffer)
Dennis DeBruler I know the train goes slow over the bridge, but that again is some nice shutter work to get the road bridge nicely framed and avoid trusses from the railroad bridge you were on. http://industrialscenery.blogspot.com/.../canal-street...

Barry Butler Photography posted
Happy 108th Birthday to the Pennsylvania Vertical Lift Bridge (Canal Street Railroad Bridge) in Chicago.
David Daruszka shared

Barry Butler Photography posted
Happy 75th birthday to the Canal Street Bridge [2023]
