Monday, July 3, 2017

Soo Locks on the St. Marys River

(Satellite)

If a view is looking upstream, then we generally see some of the bridges over the St. Marys River.

A time-lapse video from a boat going upbound (source).

A time-lapse video of Michipicoten locking downbound with H Lee White leaving the Poe Lock in the background..

Jason Pechette posted
American Mariner in the soo locks and Joe Block waiting


Public Domain from PostBulletin
The Algoma Guardian enters the MacArthur Lock

Dan Barber posted (source)
Circa 1909 - Sault Ste. Marie: the Sabin Lock empty.
[A nice view of the double-bascule bridge.]

Gerald Vilenski posted
Soo Locks, 1890. The ship up front is the Nelson of Hampton. The rest are too difficult to read...
Mark Lambert http://greatlakes.bgsu.edu/vessel/view/005170
Mark Lambert http://images.maritimehistoryofthegreatlakes.ca/.../data...\
Mark Lambert http://images.maritimehistoryofthegreatlakes.ca/57564/data
Mark Lambert https://books.google.com/books?id=mFwuAAAAYAAJ&pg=PA207...

Steve Vanden Bosch posted three photos with the comment: "These photos are from the Library of Congress of the Locks with one photo showing the whaleback barge 130 being towed out of the Poe Lock downbound."
1

2
Frederick Selstrom Now that's Boat Watching !

3

mi0608 (an index of 14 more photos)


USACE, Detroit posted
It takes a pretty big hole to build what will be longest lock in the world. This 1911 photo shows excavation well underway for what will become the 1,350 foot long Davis Lock in Sault Sainte Marie, Michigan. When it opened in 1914 it was the longest lock in the world.
Jessica Scott Burns Back when things got done. Still waiting for this new lock; 34 years now?

Andrew Haenisch shared

Emmet McNamara posted
Coming in
[Note the tugboat near the bow that is shoving the boat up against the lock's guide wall. Since we can see the bridges, this boat is downbound.]

Lock dimensions:
  • MacArthur Lock, 1943: 800' x 80' x 29.5'; this can handle salties, but not Lakers (Video from David Kaye)
  • Poe Lock, 1896: 800' x 100'
  • Poe Lock Rebuilt, 1968: 1200' x 110' x 32', this is the one the lakers must use. That length and width can also handle a 15-barge tow. But I suspect barges can't risk being on a Great Lake if a storm hits.
  • Davis lock, 1914: 1350' x 80' x 23.1'; light freighters, tour boats, and small craft when traffic warrants
  • Sabin Lock, 1919: same as Davis but it has been "mothballed."
Canada has a small lock that is used for tour and recreational boats.

Edward Sewell posted
This a swing bridge over the Canadian Lock on the Saint Marys River in Sault Ste Marie, Ontario, Canada

I Love Sault Ste. Marie, Michigan posted
Photo credit: U.S. Army Corps of Engineers
Since 1986, the Davis and Sabin Locks are supposed to be replaced by one lock that is big enough to handle lakers. They broke ground on June 30, 2009. But it hasn't been funded. (Buying a spade for ground breaking is a lot cheaper than actually building the thing.)
[Wikipedia]

Lukas Iron shared mlive2017
Soo Locks being eyed for Infrastructure upgrades? From Sault St Marie.Ontario..Will it lead to improved rail transportation?

A rendering showing the replacement of the Sabin and Davis with a
second Poe-sized lock. Courtesy of USACE
The replacement of the two unused locks by a $580 million second "laker" lock is on a list of 40 potential U.S. infrastructure "megaprojects." I expected a lot of iron ore and grain to be shipped through the locks, but I was surprised that coal is also shipped. It turns out it is coal from the Wyoming Basin that is transloaded to boats on the west end of Lake Superior. 70% of the freight through the Soo Locks uses the Poe lock.
Update:
Clarence Vautier posted
[Downbound boats in both the Poe and MacAurthor locks.]
Danny Thompson shared
On this day in 1913, crews were busy installing a crib dam below the original Poe Lock in preparation for work on the approach canal and piers.
You can browse our entire collection of glass plate images at the Clarke Historical Library's website: https://www.cmich.edu/library/clarke/SooLocks/…/default.aspx
Danny Thompson shared
This photo from this date in 1893 shows men working on the First Poe Lock. Clearly safety requirements were a little different back then. What things do you see that would no longer be allowed?
Anne Boyd Earle No hard hats; no life jackets or tether lines; is that seriously someone walking on the cables of that crane??? OSHA would have a field day with this.
Terry Mitchell Anne Boyd Earle. Your right but I worked for ACE and our Safety is much Harder than OSHA Ours is more strict in addressing situations. For instance take Cranes We have a much more testing before they are Certified. Plus the riggers have to be Certified to rig a load of say palletized material. And We cover Divers. LOL The list goes on and on.

The last ship through the locks in 2019 was on January 15.
USACE
It takes 22 million gallons to raise a ship 21 feet, but 73.3 million gallons have to be pumped out to do winter maintenance. (There are several more photos in this reference that I did not copy including some hard-hat diving to open valves on the floor.) [mlive]

First, they have to build a pile of "stop logs" so the gates can also be dry for maintenance. Each log weighs 49 tons.
USACE
USACE
Crane Barge Harvey will go down and rest on the bottom of the lock when the water is removed.
USACE
After 17 hours of pumping, the lock is ready for inspection.
USACE
Two of several photos from mlive showing how they used an industrial vacuum cleaner to clean the muck out of the culverts. I don't know for sure if these are the same culverts. There is a culvert on each side of the lock and they can move a million gallons of water a minute. They are big enough that you can drive a truck through them. Photos courtesy of the U.S. Army Corps of Engineers, Detroit District
1, before
2, after
Henry Olrogge posted
[Spring is coming, so the 888 is removing the stop gates after the winter repairs.]

Bev Sharw shared
Das Gift Haus posted
When the Soo Locks ( Poe Lock) are very busy and you are on a tour boat with a schedule, sometimes you have to share, with a freighter. We had to get in front to avoid prop wash and be first out. Talk about splitting hairs, we passed it in the Lock. With a veteran 30-year tug boat captain, no problem.
Photo and text by Edw J Reining


SaultSteMarie


USACE posted
On this day in 1907, only 11 days from the opening of the navigation season, crews at the Soo Locks had their hands full removing ice from the Poe Lock.



This photo of Soo Locks is courtesy of TripAdvisor
[If you click the photo on their site, you can navigate through some more historic photos of the locks.]

David Kaye posted
Lee A Tregurtha in the Soo Lock Canal. 7-2-19
[The reason for saving this photo is that the bascule leaves are up.]
U.S. Army Corps of Engineers, Detroit District posted
It was a day of heavy traffic for crews on duty at the Soo Locks on this day in 1892.

Gerald Vilenski posted
A Whaleback entering Weitzel Lock in Sault Sainte Marie, Michigan. Circa 1910. Looks like the little girl in the foreground may be taking a picture with a box camera...
Paul Mathews Can't get that close anymore

Mike Harlan shared
Del Jackson Probably a Kodak 620.
William Worden This is whaleback barge 131, so she might be waiting for a line from her towing steamer out of the photo ahead of her, or it might be the steamer behind her. There's another photo in the Library of Congress/Detroit Publishing collection that shows 131 in the lock with the Mariska, which would have been her towing steamer.

USACE
Ships wait to enter the Poe Lock during summer 2015 during a traffic backup caused by unexpected repairs to the MacArthur Lock.
"The Soo Locks can’t accommodate 1,000-foot freighters today, Sept. 10, [2019,] since its largest lock is out of commission for emergency repairs. This is the second quick fix on the Poe Lock in about two weeks, UpNorthLive reports. The closure could cause a backup at the shipping channel....The Poe Lock is scheduled to be closed to navigation in order to complete repairs to the Upstream Gate 1 sill today, September 10, 2019.
The lock is expected to be closed to traffic for approximately 12 hours, beginning at 9am to allow divers to safely make repairs.
Concrete grouting of the sill is required to mitigate the risk of further concrete degradation. A more permanent repair will be made during the winter shut down period when the lock is de-watered."

U.S. Army Corps of Engineers, Detroit District posted [Dec 17, 2019]
The MacArthur Lock in Sault Ste. Marie, Michigan closed for the season on December 15. Critical repairs began immediately, including replacing gears that operate the lower gates and performing electrical system upgrades.
The Poe Lock will be open to vessel traffic through January 15. Once closed, the Poe Lock will be dewatered for work on the gates, sills, emptying valves and cleaning the drainage system. Teams will conduct a thorough inspection to ensure safety and reliability.
All work is scheduled to be complete before March 25, when the 2020 navigation season begins.
Becky Algren Jones Just pray the Pie will handle ok without the help of the McArther
Gary Thompson Becky Algren Jones very few ships are small enough to fit through the Mac anyway.

Great Lakes Dredge & Dock
USACE, Detroit posted fourteen photos with the comment: "When the last freighter of the 2019 navigation season cleared the Poe Lock on January 15, crews at the Soo Locks immediately began working to dewater the Poe Lock to prepare for a busy maintenance season.  #SooLocks  #WinterMaintenance  #USACE"
Ben Stalvey shared with the comment: "One sweet looking MLC 300."
[mlive also has a copy of these USACE photos and captions. But my copy is ad free. The mlive article does have some background information in its intro.]
1
Shortly after the last freighter for the season left the lock, crews moved cranes and barges into the lock to begin setting stop logs (steel bulkheads) at the upper end.
Adam Bertrand US army LT Tug boat
Which one??

U.S. Army Corps of Engineers, Detroit District It is the USACE Tug Billmaier. This tug normally operates out of the Duluth Area Office but is supporting lock maintenance activities this winter.

2
Using the new heavy lift crane on a floating platform, eight stop logs are set into place to create a temporary dam at the upper end of the lock. Each log spans the 110 foot wide canal and weighs about 50 tons.

3

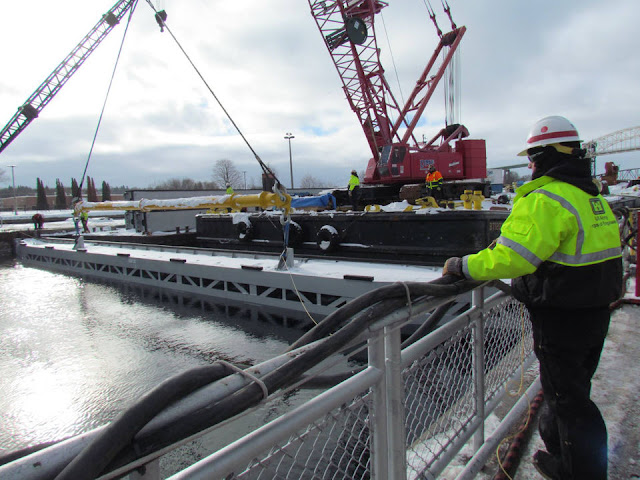

Workers remain in constant contact with the crane operator as the logs are lowered into slots in the lock walls. Crews on both sides of the canal ensure that the logs descend evenly to prevent them from sticking.

4
After setting the stop logs, the crane moved East in the lock to set a temporary bridge across the Poe Lock.
Don Paton May I ask the weight of temporary bridge? looks heavy.U.S. Army Corps of Engineers, Detroit District The bridge actually weighed more than the stop logs when it was set into place. The bridge was over 60 tons. Probably due to its width and the reinforcing required for heavy equipment to use it.



5
Workers help guide the bridge into position. Having temporary bridges across the MacArthur and Poe Locks has allowed more flexible use of heavy equipment during lock maintenance. Without the bridges, all equipment had to be delivered by barge before dewatering the lock and could not be removed or used elsewhere on the facility until spring.
Bob Brickman Is this a ‘Bailey Bridge’?U.S. Army Corps of Engineers, Detroit District This one is a panel bridge, similar to a Bailey Bridge



6
The Detroit District Dive Team plays an important role in dewatering the lock. Divers hook up bubbler systems and chink leaks between the stop logs.


7
With water temperatures around 34 degrees, divers were comfortable working in dry suits but on the surface tenders braved 18 degree air temperatures with the windchill making it feel like 1 degree.


8
The final dewatering task for the heavy lift crane is setting stop logs across the lower end of the lock. These logs, like the ones at the upper end, weigh about 50 tons each and will span the 110 foot wide canal. The crane will spend the winter at the lower end providing lifting support to crews working on the lock floor.


9
Workers help ease the log into its slot in the lock wall while the signalman tells the crane operator to hoist the load.
Don Paton It’s me again, are these logs stored onsite for use again? Or where they fabricated for this job only??Greg Turner Both. They are stored onsite but additional stoplogs were procured so that the dewatering gate could also be maintained.
[A comment on another photo indicated the stop logs weigh 50 tons apiece.]



10
As the log is lowered into the water a worker on each side holds a sounding line to monitor the depth of the log. This way even when the log is out of sight they can ensure it is sinking evenly and verify when it has reached bottom.


11
A view of the installed stop logs at the upper end. At the right the intake ports for the lock are visible. These openings in the lock monolith allow water to flow through the culverts and into the lock chamber.
U.S. Army Corps of Engineers, Detroit District The logs are just over 4 feet high and across the center, where they are widest, are 8.5 feet wide. To span the entire canal and fit within their slots they are 116 feet long (6 feet longer that the width of the canal).



12
A view of the dewatered Poe Lock taken from the upper stop logs. Despite a snow storm crews were busy laying up the lock and staging equipment for the busy maintenance season.


13
A crane lowers equipment to the lock floor.


14
A view of the lower gates from the lock floor. Each gate is 57 feet tall and weighs 225 tons.
U.S. Army Corps of Engineers, Detroit District Greg Turner gate two is pictured, if you look in the upper right you can see part of gate three in its recess.
[Unfortunately, I don't know how the gates are numberd. I presume the numbering includes dewatering gates as well as the regular gates.]

Jeff Koenigs commented on Ben's share
3 new machines set up there 12000 was July MLC 300 and GHC 130 in november.

A video of "USCG Mackinaw up bound out of the Soo Locks around 12:45 today. 3-19-19."

A video of "Three footers in the Soo Harbor, Mesabi Miner, Paul R Tregurtha, Edgar B Speer on a beautiful summer day. Viewed from the Tower of History. 6-8-18"

A video of "Wilfred Sykes being lowered in the MacArthur Lock then leaving. 7-17-18
Time Lapse Video." There is also a sliver of a CSL boat entering the adjacent lock.

President’s Promise to Fix the Soo Locks Resonates With Sault Residents (source)

New Soo Lock that could employ thousands in Michigan pushes forward
New Soo Lock economic validation study complete, I wonder how many times these locks have been studied to no avail. The problem is that the studies themselves cost money.

U.S. House approves authorization for replacement Soo Lock (source)

State of the locks

Army Corps of Engineers budgets $75 million toward Soo Locks upgrade  $75m struck me as a drop in the bucket (lock?). But a step is better than no steps since 1986 when the new lock was authorized. "If Congress appropriated the requested $75.3 million for the project next fiscal year, it would keep the project on track for completion seven to 10 years from whenever construction starts, said Lt. Col. Greg Turner, district engineer for the Army Corps' Detroit District."
The U.S. Army Corps of Engineers is proposing a second full-size lock for the complex at Sault Ste. Marie. It would cost about $1 billion. Officials say the proposed 2020 funding would pay to begin construction of upstream approach walls, continue design of the lock chamber and finish upstream channel deepening. Lt. Col. Greg Turner says it would keep the project on track for completion in seven to 10 years. [ClickOnDetroit]
Phase one of New Soo Lock construction to begin Spring of 2020The image above is an Artist Rendition that illustrates what it might look like if a Second Poe-Sized Lock replaced two of the older locks (left portion of the photo). The project has received more than $32 million in the fiscal year 2019 work plan. (Photo Courtesy: U.S. Army Corps of Engineers, Detroit District)

Saginaw River Marine Historical Society posted
Ric Mixter will do a FREE presentation for the Saginaw River Marine Historical Society in March. "The Soo Locks" starts at 6:30 pm on Saturday, March 21, 2020. More about this presentation at https://www.facebook.com/events/209061756929386/
Ric recently wrote and produced the segment “Soo Locks” for Great Lakes Now, a monthly news program for Detroit Public TV. He will share clips from the show and highlight some of the new technology designed to service and maintain the locks.

WFGR
Soo Locks Drained And 6000,000 Pounds of Debris Removed
[This article has several more photos.]

safe_image for Construction of new $1 billion Soo Lock begins
The 1,200-foot lock to match the Poe Lock will be completed in November 2021.
Over 85% of commodity tonnage through the Soo Locks is restricted by vessel size to the Poe Lock.

USACE posted
The first load of bedrock arrived from the Upstream Channel Deepening of the New Lock at the Soo project on Thursday, July 16 in Sault Ste. Marie, Michigan.
We are excited about the ongoing progress on this mission to build a redundant lock at the Soo, adding resiliency to our nation's shipping supply chain!
