Tuesday, September 29, 2015

Hazmat Placards

Hazmat Training
This was another posting that got wiped clean when I did a ^Z to undo a mistake after I had written a lot of it. Since the bulk of the info was the pictures of tank cars and their placards, I'm letting the pictures do most of the talking this time.

I had gone to town to take a picture of the depot, so a mixed freight coming through on the close track at probably 60 mph caught me by surprise. The pictures are not good, but the numbers are big and even when speed-blurred, can be read. A DOT guidebook allows me to interpret the numbers: (Update: I'm adding other tank cars that I have found since then.)
  • 1267: 128 Petroleum crude oil
  • 2227: 130P n-Butyl methacrylate, stabilized
  • 1760: 154 Ferrous chloride, solution
  • 1280: 129 Propyl chloride
  • 1993: 131 Compound, cleaning liquid (flammable)
  • 1017 124 Chlorine
  • 1832 137 Sulfuric acid, spent
  • 3463 132 Propionic acid, with not less than 90% acid
  • 1086: a, b, c 116P Vinyl chloride, stabilized
  • 1301 129P Vinyl acetate, stabilized
  • 1063 115 Methyl chloride
I analyzed another mixed freight. I shot pictures of five cars at the time because I was interested in the type of car, not the signs on the car when I took the pictures. So the resolution is not good enough to read the numbers. But two of the tank cars had blue cards and one was Type 9.








20150427 9469c
I analyzed a westbound mixed freight that went through Downers Grove on April 27, 2015, and I found the following:

  • 1075: 115 Butane,  ten of them in two cuts
  • 1267: Crude oil, it is strange to see just one of these in a train
  • 3257: 131 Nitriles, poisonous, flammable, n.o.s., two of them (Facebook)

I include a closeup of one of the 1075 cars. Evidently Butane is also Liquefied Petroleum Gas. I find it disturbing that it is non-odorized. That probably means if a tank setting on a siding springs a leak, it will be hard to detect until a fire or explosion happens.

3257 is nasty enough that they include an 800 number on the car to call in case of emergency.


20141211 0077c
In a train in Evansville, IN, there were several of these Molten Sulfur cars. Why isn't the number 2448 in a colorful placard? I guess if a car is going to haul just one type of commodity, they can paint the number on the car instead of using a placard. But that puts the number in a non-standard place and it does not have the visual presence of a big diamond. Maybe the development of the 800 CHEMTREC service has effectively made the placards obsolete.

  • 2448: 133 Sulfur, molten, five of them
  • 3082: 171 Environmentally hazardous substances, liquid, n.o.s., nine of them

Update: I passed a Sherman-Williams semi-truck trailer on I-57 hat had both flammable and corrosive placards.

20171017 6323

  • 1010: Butadienes, stabilized 116P
  • 1010: Butadienes and hydrocarbon
    mixture, stabilized
    116P
Dennis DeBruler posted on Facebook:
  • 1017 Chlorine
  • 1136 Coal tar distillates, flammable (again)
  • 1202 Diesel fuel; fuel oil; gas oil; heating oil, light (again)
  • 1295  Trichlorosilane     Alan Roeben: "Gives off hydrochloric acid when it gets in contact with water.  Used in silicon conductors when ultrapure."
  • 1832 Sulfuric acid, spent
  • 1993 Combustible liquid, n.o.s.; Compounds, cleaning liquid (flammable); Compounds, tree or weed killing, liquid (flammable); Diesel fuel; Flammable liquid, n.o.s.; Fuel oil
  • 2428 Sodium chlorate, aqueous solution (again)
  • 3257: 131 Nitriles, poisonous, flammable, n.o.s
  • 3475 Ethanol and gasoline mixture, with more than 10% ethanol  (again)
Railfanning:
  • 1203 128 Gasohol, Gasoline, Motor spirit, Petrol

ERG 2106 (Emergency Response Guide 2016) is now available for download. I learned of this link from a Facebook posting to a closed group by Jimmie Fisher. He says the guide is issued every four years. The 2012 version I had was 4,250kb, this version is 4,780kb. I'm glad I noticed this link because I have discovered that the 2012 link I had at the beginning of this posting was a temporary link and is now broken. I have updated that URL to this URL. Hopefully this URL is more permanent.


Jimmie Fisher posted
Bristol, Virginia, November 28, 2009, 11:52am.
ETCX 84001: Tank car, 4 compartments, owned by Eastman Chemical Company.
Compartment 1: Capacity 5,724 gallons, methyl isobutyl ketone, hazmat placard number 1245.
Compartment 2: Capacity 5,734 gallons, methyl isobutyl ketone, hazmat placard number 1245.
Compartment 3: Capacity 5,734 gallons, unspecified flammable liquid, hazmat placard number 1993.
Compartment 4: Capacity 5,729 gallons, unspecified flammable liquid, hazmat placard number 1993.
Light weight: 87,500 pounds.
Load limit: 175,500 pounds.
Coupled length: 61 feet 1 inch.
Built March, 1997, builder unknown.

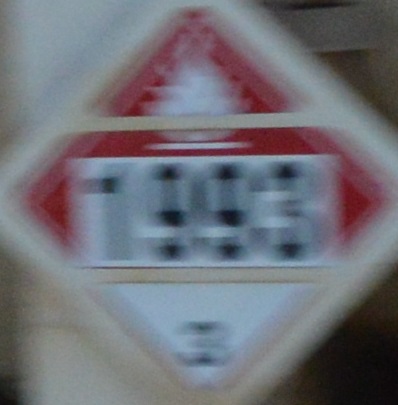

John W. Coke 1993 (Diesel n.o.s.)Flammable Liquid
Jimmie Fisher Hazmat placard 1993 refers to several different combustible/flammable liquids, including, but not limited to, diesel fuel, fuel oil, herbicides, and cleaning fluids. Reference ERG (Emergency Response Guide) 2016.

The new URL is more permanent, but it is harder to find the .pdf. I finally found the 2020 version.

March 31, 2021 in Downers Grove, IL


New codes:
  • 2031: 157 Nitric acid, other than red fuming, with not more than 65% nitric acid
  • 1987: 127 Alcohols, n.o.s.
  • 3295: 128 Hydrocarbons, liquid, n.o.s.
Codes that have already been documented in these notes:
  • 1760: 154 Ferrous chloride, solution
  • 1993: 131 Compound, cleaning liquid (flammable)
  • 3257: 131 Nitriles, poisonous, flammable, n.o.s.   It is labeled HOT ASPHALT.
  • 1075: 115 Butane

Friday, September 25, 2015

MoW: Undercutters

Matt Wayand commented in Facebook
As a comment to the track welder Facebook posting, Matt Weyand provided a picture of a switch undercutter attachment on an excavator that is another example of using an excavator attachment that uses a secondary hydraulic power source. (Previous examples are a brush cutter and snow blower.)

A Google search quickly reveals that several manufactures make an attachment for undercutting. It is basically a chain on a bar that is powered by a hydraulic motor. This video has the lowest ratio of "fancy" graphics to information of the ones I watched.
NMC Railway Systems
When the ballast becomes filled with dirt (below), it can no longer do its job of draining water away from the track.

20150720 3500
Illinois Railway in
Yorkville, IL
The undercutter is used to remove the dirty ballast. Then new ballast will be dumped on the track and the track will be surfaced.

Undercutter attachments are used for small jobs and in places where the big machines can't operate such as under turnouts. Speaking of the big machines. They undercut, pick up the ballast, run it over sifters (see 2:18 in video), and drop the cleaned ballast back on the track (2:27). The dirt and broken rocks that fall through the sifters are deposited to the side (2:57). A video of a longer ballast cleaner uses separate machines in one long unit for cleaning the side ballast vs. the ballast under the ties, but it doesn't seem to go much faster than the compact machine in the first video.

Update: now I need to figure out what "sledding" is because that would be what the machine with the big "wings" is doing in Facebook. BTW, the pictures are not in order because the DYNA-CAT is a tamper that levels the track after the ballast cleaning equipment has disturbed the track.

Update: video. Comment by Matt Weyand on Facebook: "Ballast Tools Equipment 15 Foot Undercutter Bar with spoil removal wheel. This is how we like to Undercut!!!"

A UP video of a train that lifts the track for the undercutter chain, cleans the ballast, then replaces the ballast. I wish they had added some overview shots of the train. I see UP is using concrete ties. BNSF is still replacing wood ties on their mainline into Chicago.

The first part of this video is an undercutter being transported to another work site. At -0:18 is a high production tamper.
(source)
Dennis DeBruler At the end is a ballast distributor. It looks like it can do in one pass what a normal ballast regulator has to do with several passes back and forth over the same area using different attachments.
http://www.plasseramerican.com/.../ballast-distributing...

Dennis DeBruler Between the ballast undercutter and the distributor is a continuous action tamperhttp://www.plasseramerican.com/.../tamping-09-3x-cw...



MoW: Track Welders

Wayne Helms posted in Facebook
I saw two different types of welders posted in Facebook within 24 hours of each other. Both of these are arc welders that use an on-board generator set to send a lot of amps through the metal to be molten.

In the case of the Chemtron CAT below, note the railroad wheels that can be lowered so that the unit can travel down the track. The "box" on the rear of the cab is the engine and generator for the weld head that is hanging from the boom.
Nick Parker posted in Facebook

A video of one in action  There is another video down in the comments. That video has a lot more sparks. Comments are asking what is wrong with the unit in the original video.


Thursday, September 24, 2015

ACI and AEI: Automatic (Car|Equipment) Identification and RFID

I came across a static display of a caboose that had an ACI plate. I can remember that it took several years for most of the freight cars to get them, and then not too many years later the industry abandoned the technology because the labels got too dirty to read! icrr.net indicates the program started in 1967 and was terminated in 1978. In cs.trains.com a comment by BaltACD explains that heat also rendered the labels unusable --- "labels were routinely burned off on gons used in hot slab loading as well as hoppers that went through the thaw sheds for winter time coal dumping."

RFID (Radio-Frequency IDentification) technology allowed the railroad industry to try again to automate identification. RFID technology has been in development for decades to allow many industries --- freight trucks/containers, retail, libraries, healthcare --- to automate inventory (and pets) tracking. An RFID Tag is mounted on each object to be tracked, and readers are installed at strategic locations. For example, our library now has readers that you must walk through at each of the exists as well as to checkout stacks of books. An important aspect of the tags is that they get the power they need to respond from the beam the reader sends to communicate with the tag. The development of the technology keeps shrinking and reducing the cost of the tags so that they can be more ubiquitous. By the early 1990s, the industry could afford to put a 3 by 10 inch tag on each freight car, container, locomotive, MoW vehicle, etc. In this application, not having a battery was an issue of maintenance rather than size or cost. Since the end of 1994, all items are to be tagged. That includes over 1.2 million cars and 22,000 locomotives. (Trains) The tags are supposed to be on the left end of each side. As an aside, the RFID industry's goal is to make the tags cheap enough to replace the UPC Bar Code. That is, all items in all stores can be read by RFID scanners. Note that scanners can be used for inventory counting as well as checkout.

I don't remember seeing tags on modern equipment so I looked at some of the pictures I took of a mixed freight on April 27, 2015. At first, it was hard to find them. But then it became rather easy to find them. I added a red rectangle around the tags.






(For future reference, a link to freight car history.)

Update:
Mark Hinsdale posted
Photo is from July 1977, at Dolton.
Thomas Kidd  MP 3232 is Northbound and the other is Southbound.Jim Sinclair Mark, not only is this a great capture with lots of human interest, you also captured the ACI scanner, which is seldom seen in older images.

Steve Forrest posted
The "Memphis Big Boy" derrick based out of Johnston Yard in Memphis back in Oct 1973. Kodachrome by Steve Forrest.
Dennis DeBruler That is the best preserved ACI marking that I have seen.
Digitally Zoomed


Sean Graham-White posted two photos with the comment: "Before AEI, the BRC had cameras along primary entrances/exits to Clearing Yard to record reporting marks of each train. Clerks would verify them to train reports that had been advanced from other railroads to ensure accurate car reporting and billing. Bedford Park, IL 7/1/95"
Richard Brunke: AEI was being used/tested/perfected long before 1985...try the 70's.
Sean Graham-White: Richard Brunke You are thinking of ACI - similar to a barcode, that was applied to the side of rolling stock. Photo was taken in 1995.
James Petrusek: When I worked there (2015-2017) we still had cameras to monitor near each AEI installation. The clerks would often still review the video to verify cars. Despite RFID, wheel sensors and a sonar presence detector, there still were errors. RFID tags would fall off, metal shavings and grease from flange lubricators would cause havoc with wheel detectors, or a good rain or worse, ice and snow would foul the presence detector horns. We had to do routine maintenance and lots of snow duty to keep them working.
Our biggest headache would be ballast or track crews might use a machine and break off the wheel detectors! Very frustrating.
Joseph Tuch Santucci: They used to have clerks at the entrances to the east and west receiving yards who did this the old fashioned way with paper and pencil. The conductors gave the clerks their trains’ waybills. The clerks would place the hand written lists and waybills into cylindrical containers and place them into the vacuum tube where they were zipped to the main office building just below the humps. These clerk jobs were eliminated with the cameras that were installed. Progress.
1

2




MoW: Vegetation Control (Weed Spray)

Marty Bernard posted two photos with the comment: "Here's a weed sprayer at Leland, IL on July 17, 1963. And the operator was spraying the station platform! One train each way stopped at Leland -- the Galesburg local, which was an E-unit and one car, and it stopped at the depot behind the camera. I'm sure what ever he was spraying was not environmental friendly either. But it makes an interesting picture. The second picture is of CB&Q GP7 225 630717 pushing the Weed Sprayer train."
Marty Bernard shared
Candice Marie Lynn
Caught this in Mitchell Illinois at Lennox Tower which was closed a few years ago. Not much has changed in the equipment set up in 60 years.
Marty Bernard: Candice Marie Lynn The weed sprayer crew is on the roof.
Candice Marie Lynn: Marty Bernard some things have changed and I thought about that when I posted it. Instead of spraying from the front, they’re spraying from the “cans”, the motor is on point and, there’s no cabin. But overall, the practice seems the same. Overall, a rare catch for me and not really something you see everyday.
J Pete Hedgpeth: Old agreement between RR and engineers...from "back in the day" when the "chemical" was poison and was actually referred to as "Poison Weed Killer"...I worked one just like this...it may have even been this one...summer 1958 on the Burlington's Wymore Division I was told that the agreement with the engineers provided that there be 8 cars between engine and spray car. We sprayed two days Lincoln-Falls City via Tecumseh first day...Falls City-Wymore via Table Rock, Burchard etc. I just added that experience to my "Wonderful Railroad days" and have written for several publications about. it. My job as head brakeman was to ride "up front" with the spray operator and control the speed and stops and starts via HAND SIGNALS...no radios. I just added this experience to my repoitous of unique..never to be repeated or forgotten railroad experiences.
1

2

safe_image for Steve Patterson, 1966
Seemingly with all nozzles “on,” a HABCO weed sprayer train works northward on the Rock Island at Holton, Kansas, headed for St. Joseph, Mo.

In the 1960's, they used to "generously" spray the vegetation on both sides of the track as well as the roadbed. Now they mechanically chomp up the tree branches and brushes on the sides that are too close to the roadbed to reduce how much herbicide is sprayed into the environment.

R. Horn Railroad Photos posted
CB&Q at Riverside, IL. Nalco Chemical Co. car heading up a westbound train while spraying herbicide along the tracks.
At the time there was a spur or siding on the south side of the line (seen at right edge), mostly used by work crews. I seem to remember seeing a small doodlebug parked there as well.
R. Horn Railroad Photos shared
Another photo by my dad, Richard A. Horn
Michael James: Does anybody know what they sprayed? When in college I worked summers for the DOT (1978, 1979) on a rode crew. We were working near a BN crossing when the spray train came towards us. They stopped the train and made us leave while they sprayed. The gentleman in charge told me the product came from a chemical plant near Palmyra MO. They mix a large baby food jar worth into the entire tank. He said it will work for 5 years. Now he may have been full of bananas but that is what he said.
John Carmen Jacobs: Michael James I worked at that plant for twenty years, it’s located on the K-Line at South River MO between West Quincy and Hannibal. The product that we made that was sold to railroads was a herbicide called Arsenal. It was a total vegetation killer that almost sterilized the soil. The same plant produced Thimet and Counter insecticides . These three chemicals are in the same family as Agent Orange.

20150913,16 4674, Northwest Corner
UP has done a nice job of preserving the C&NW depot in DeKalb. While I was taking pictures of the depot, I noticed the MoW equipment (red truck) on the left side of this picture. I took a closeup of the truck (below).

Note the seat on the back with a joystick for each hand. When in operation on a track, I had presumed the boom on top swings around and that it has nozzles on the end of the boom to do targeted spraying of herbicide on the roadbed for vegetation control. But now I have determined that it is a vacuum loader truck.

Vern Wigfield -> Grain Elevators of North America
Vern's comment:
Marietta, MN - 1954 -- M&StL Weed Burner 427 scorches the main line while passing by the Pacific Grain Co elevator. The Co-op in view was the main gas station in town and was farmers owned.
This would be one way to avoid releasing herbicides into the environment. But one of the comments pointed out it might be a little hard on the ties. And it is a good thing the grass is very green. Otherwise there would be a lot of ground fires.

20151026 5107c
BNSF also does precision herbicide spraying. I zoomed in on a picture I took while railfanning on my way home from the Downers Grove library at Forest Avenue. Note the green clump of ragweed in the foreground. If you look very closely between it and the tracks, you can see brown sprigs of killed vegetation. Also, the green clump by the road shows where they had to bring in the spray boom to clear the crossing gates.

I deliberately took a photograph down the track to the west to show that there was a precise line between live and dead vegetation at about 10-12 feet away from the track. But I can't find that photo. Another mystery as to what did I do wrong.




Update: There is no doubt the following equipment is weed spraying. Gary Talska posted two photos with the comment "Heads up on the IAIS Peoria sub. Asplundh Weed Sprayer train is in Bureau tonight 03/31/2016. Reportedly will be serviced on Friday and spraying on the sub Saturday and Sunday."

1
2

Doug Gartner posted two photos with the question: "What was this I spotted in Topeka today?"
William Busby: Vegetation Spray Train built by Relco for UP
1

2

Two of the twelve photos along Historic 66 posted by Joseph Tuch Santucci:
a
A Union Pacific weed sprayer train along the former GM&O mainline.
b
The tail end of the weed sprayer train.
[Note the spray is at the front of the second car.]

Unless you like listening to noise, skip to about 0:35.




Wednesday, September 23, 2015

Whitcomb Locomotives

20150913,16 4711
The Rochelle Railroad Park includes a static display of a Whitcomb locomotive. In 1878, George D. Whitcomb started manufacturing coal mining and knitting machinery, and in 1892 he incorporated his business as the George D. Whitcomb Co. In April 1906, they built their first gasoline-powered locomotive for mine use. (Update: Steve O'Connor indicates 1910 is probably a more accurate date.) In 1907, production was moved from Orleans and Ohio Streets in Chicago to Rochelle, IL because his largest knitting customer was there. During WWI, most of the output of the plant were government orders. In 1929, they designed and built the largest gasoline-electric locomotive that had been offered to American railroads. Soon after, they started producing diesel-electrics.

Starting in 1927, the Baldwin Locomotive Works helped Whitcomb sell locomotives oversees, So when it went bankrupt in 1931, it was aquired by Baldwin. WWII again produced heavy government demand for their locomotives, and the size of the plant was doubled in 1942. But in February, 1952, production was transferred from Rochelle to Baldwin's Eddystone Works in Pennsylvania. The name on the industrial line of locomotives was changed from Whitcomb to B-L-H in December, 1952. That line of locomotives seized production in March, 1956. (Wippany, Wikipedia)

Taplines has a nice collection of pictures arranged from smallest to largest.

1922 Sanborn Map
A 1922 Sanborn Map indicates the plant was in the northeast quadrant of Second Street and Fifth Avenue. A 1939 Aerial Photo of that area shows the plant was still on the eastern edge of the town.

1939 Aerial Photo from IHLAP
There are still industrial buildings at that location  so I wonder what is made there now.
When I noticed it had poling pockets, I looked at all four corners to try to find the best light. I picked the southeast corner not only for the light but because it had been "ripped." It is had to imagine what caused the force needed to "tear" steel. Note the side rods on the wheels.


Update: several photos of the plant. (experimental link)

Republic Locomotive says they are "the only manufacturer of all-new industrial locomotives in North America." I found their description of why AC traction motors have about double the adhesion of DC traction motors to be rather fascinating.

Steve OConnor posted
Steve's comment:

HOW TO HIDE A 65 TON LOCOMOTIVE
“Whitcomb Diesel locomotives built here in Rochelle have played an important part in this war on almost every front. Being smokeless and easy to camouflage against air attacks these locomotives have been extensively used where standard coal burning locomotives proved impractical.
In our January 12th 1945, issue of the Leader we printed an interview with W.F. Eckert, chief engineer at Whitcomb in which he told how Whitcomb built locomotives had solved the English and American transportation problem in North Africa, German bombers had blasted most of the regular locomotives as their smoke was easily spotted by the fliers.
Rochelle Whitcomb diesel locomotives were then camouflaged as regular box cars. In the make up of trains the location of the “ box-car-locomotive” was constantly changed to elude the Germans in their bombing attacks.
The plan proved very successful, and it has been credited as one of the major forces in the British success in the drive from Egypt to Tunisia during the latter four months of 1942 and early 1943.”
The Rochelle Leader
May 4, 1945

Steve OConnor comment for above posting
Steve OConneor comment on a posting
The Whitcomb factory in Rochelle circa 1930's.
Steve OConner comment:

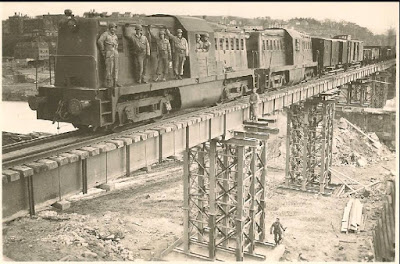

Whitcomb Enters WW II
“During the latter part of 1940 we were asked to design a locomotive which could operate successfully through desert sand storms and keep cool with the thermometer registering 125 F. in the shade. The only other known factors, besides the gauge of track was that they needed all the power we could give them but the weight had to be reduced to the absolute minimum. That is just about as contradictory as wanting the strength of a draft horse in a Shetland pony. As the boys in the engineering department were only working about 60 hours a week at that time, they decided there wasn't any particular reason why we couldn't tackle the problem. By actual count there are 10,756 different items necessary to build that Diesel electric locomotive, and the fact it is still in production offers conclusive proof that the engineers did their work well. Incidentally, in that count the Buda diesels, Westinghouse Electric Equipment, the Young Radiators and all other materials purchased in a finished state are merely figured as individual items. The balance had to be designed, detailed, weights estimated, purchased, machined, fabricated, assembled, crated and the completed product sent on its way. We received the actual contract shortly before Christmas and the first units were operating in Egypt the following May. That is less than half the normal time required on a completely new design. Certainly there isn't much I could say to further emphasizes the splendid spirit of cooperation which not only exists within the Whitcomb organization but also extends out among all of our suppliers. They have done a grand job and all of us know it.”
H. G. HeulguardVice President, General ManagerWhitcomb Locomotive CompanyThe Rochelle News, January 26, 1944
Steve OConnor posted
Steve OConnor posting
Steve's comment:
Whitcomb 65-DE-19a locomotives built in Rochelle, Illinois, WW II Trier Germany March 1945.
At least a couple of the military models have survived.


video of a Buda running. One article mentioned they had trouble with the cylinder heads. Skip to 3:33 in an Army video to see the locomotive in action.
Steve OConnor -> RAILROAD HISTORY BUFFS OF ILLINOIS

Steve's comment:
October 10, 1940 Dekalb, IL. Brand new Whitcomb switcher built in Rochelle just 20 miles west of Dekalb. WAITE W. EMBREE Collection, Northern Illinois Regional History Archives, NIU. Note the Embree name on the hardware building in the background. Waite Embree took numerous photos of rail activity around Dekalb at this time. http://www.ulib.niu.edu/reghist/regionalhistory.cfm
Steve OConner posted
This page ad is from the 1947 Locomotive Cyclopedia which my Dad bought new. I found it when cleaning out his house and thought it might be of some value.

Steve OConner posted
More from the 1947 Locomotive Cyclopedia.

Steve OConner posted
 Scan of an original builder's photo, Whitcomb factory in the background.
Steve OConner posted
A shipment of Whitcomb locomotives built in Rochelle photographed in Dekalb, 1949. Waite Embree collection, NIU. The Dekalb coal tower in the background.
Arthur Shale Looks like some of CN's 75-ton 75-DE-12c types being delivered. All eighteen were returned to Whitcomb in 1950 and 17 were sold to Rock Island.


Steve OConnor posted four photos with the comment:
Whitcomb and the Illinois Coal Mining Industry - PART 1 - - - - - - - - - - - - - - - - - -Before 1878 the only way to remove coal from a shaft mine was to blast it out. But before you could reach for the black powder you had to undercut the coal seam. The only way this could be done was to have a miner lay on his side for hours on end swinging a pick to chip away a slot under the coal seam. Once done holes were hand drilled 3-5 feet deep at the top of the seam and black powder charges packed in with a fuse. If the seam was not undercut the impulse from the explosion would go into the roof, fracturing it and creating a great risk of roof collapse - the number one cause of death in coal mines. Then entered George Dexter Whitcomb - - - - Early in life, George Dexter Whitcomb, moved with his family, from Brandon, VT, to Kent, OH. Here he started his business career, engaging with the Pan-Handle Railroad, as purchasing agent. While in this employment, the air brake was invented, and he became very interested in its development. He co-operated in making the tests of the Westinghouse Air Brake and was one of the original stockholders and members of the Board of Directors of the Westinghouse Air Brake Company, when it was organized.
In 1868, George and his wife Leadora had a son, William Card Whitcomb. As an adult, William received an engineering degree from the newly founded, University of Southern California in 1889. Upon graduation he would join to assist and improve his father's business.
George left the Pan-Handle Railroad about 1870, moving to Chicago, where he took charge as manager of the Wilmington Coal Mining and Manufacturing Company's mines at Braidwood, IL. He also managed the Wilmington Coal Association which handled the output of the Braidwood, IL coal field.
He continued in charge of these mines until about 1878. While there, the Harrison Mining Machine was brought to his attention. The concept of the power pick was that of a hand-held machine controlled by one person and operated by compressed air. He saw merit in the idea and took hold of the machine. He developed and perfected it into what is now known as the "Puncher Machine." This machine was the first successful undercutting machine put on the market in this country. He resigned his position with the coal company about 1878 to devote his entire time and attention to the mining machine business. More to come . . .
Nick Koba Jr. thanks for posting as a braidwood coal miner I never knew this piece of History I hope you don't mind if I copy this for our local historical Societies .
Steve OConnor You are more than welcome to share. Somewhere I read that the introduction of these undercutting machines led to some violence in the Braidwood coal fields from miners who saw it as a threat to their jobs but I can't find it now. Also there is a lot more history to come about this company and coal mining.
Nick Koba Jr. the Braidwood miners were a routy bunch and Braidwood was also the birth place of the UMWA it was had the first local is was Local Number 1 . a lot of history in this coal mining area . I have a book being printed right now about the local strip mines of this area from 1927 to 1974 when all mining stopped here .
Nick Koba Jr. Steve OConnor this company in Braidwood that he work for also owned the Diamond No. 2 Mine on Feb. 16th. 1883 heavy rains melted heavy snow and it broke into this coal mine flooding it between 69 to 74 men & boys were killed a month later the water was pumped out and 28 bodies were removed & 41 to 46 remain in the mine . there is a munument on the North side of Rt 113 a mile West of I-55 to these men & boys .
Michele Enrietta Micetich There was a serious miners' strike in 1877 in Braidwood which led to the importing of Italian and Bohemian/Slavic miners to our area. Whitcomb left at that time.

Skip Luke We used coal equipment to mine Trona (soda ash) in southwest Wyoming ..... Conventional sections used the coal cutter, although it cut a vertical slot in the middle of the face instead of undercutting. It was mounted on a Joy self-propelled chassis. we also had continuous miner sections. Mine 1600 feet deep, seam went for many miles.
1

2

3

4
Steve commented on his post
As this chart shows, mechanized mining rapidly replaced hand work. In 1891 only 6.7% of bituminous coal was machine mined. By 1900 over 25% was done by machine.
Steve OConnor posted three images with the comment:
Labor Agitation and the Introduction of Mechanized Mining - the Braidwood Illinois Experience. - - - - - - - - - - - - - - - - - Why did Braidwood become home to the Mine Workers’ Union Local #1 which was the first Miners’ Union in Illinois? It led to the unionization of all states that mined for coal. Maybe because Braidwood was also home to the nation's first successful mechanized mining machine. George Whitcomb came to Chicago around 1870 and as I already posted he took charge as manager of the Wilmington Coal Mining and Manufacturing Company's mines at Braidwood, IL. He also managed the Wilmington Coal Association which handled the output of the Braidwood, IL coal field. During this time he also developed the Harrison mining machine. I can find documentation that the Chicago, Wilmington and Vermillion Coal Company were using these machines by 1881. Before these machines existed hand mining required skill, and young miners usually served an apprenticeship under a relative. Lying on their sides, miners first used a pick to undercut the coal three to four feet deep. Undercutting required two to three hours each shift, and standing water often made the task particularly unpleasant. Based on his knowledge of the coal seam, the miner then chose the appropriate places to manually drill the coal face and tamp the holes with explosives. Well placed, the subsequent blast dislodged the coal as far back as the undercut. Poorly placed, the shot broke away little or no coal, and dropped the material in a solid block. This was known as a hung shot. Careless or unskilled blasting preparations could produce a blown-out shot that suspended and ignited the coal dust. After shooting, miners loaded the coal into a mine car, set timber roof props, and extended the track for the next cycle. (https://www.wvencyclopedia.org/print/Article/1835 ) The introduction of mechanized mining eliminated the need for skilled miners and his job security went with it. Was this the incentive that formed the United Mine Workers of America?
1

2

3

4

Steve OConnor posted two images with the comment:
Whitcomb and the Illinois Coal Mining Industry - PART 2 - - - - - - - - Whitcomb's introduction of the first successful undercutting machine in 1878 gave them a monopoly - a short lived monopoly. Soon, two older and larger mining equipment manufacturers had jumped into the field; Sullivan (head office in Chicago) and Ingersoll-Sergeant ( New York City ) - - - - - COMPRESSED AIR - - - - The power source in these early days was compressed air which created problems. First, the coal mines had to invest in a powerhouse to run an air compressor and this was a large investment. Second, the deeper the mine the longer the air pipes and lines resulting in friction losses in air pressure at the coal face. But even with these problems by 1891 there were 545 compressed air puncher machines in coal mines and by 1902 that number grew to 3,185. But there was a new animal on the market - electric-driven chain undercutters.- - - - - ELECTRIC POWER - - - - In itself, the electric-driven chain undercutting machine did not represent a larger threat to Whitcomb than the compressed air units of Sullivan or Ingersoll. But a new development in another aspect of coal mining did represent a HUGE threat to Whitcomb that could put them out of business if they didn't do something quick. More to come.
1

2

Steve OConnor posted three photos with the comment:
Whitcomb and the Illinois Coal Mining Industry - PART 3 - - - ENTERING HAULAGE - - - On July 26, 1887 the first electric mine locomotive in the United States entered service in Pennsylvania. In 1888 the first electric mine locomotive in Illinois began operating at the Number 3 mine of the Chicago, Wilmington & Vermilion Coal Company at Streator made by the Sperry Electric Mining Machine Company of Chicago. By 1904 every important mining district in the state had at least one mine using electric locomotives. Hauling coal out of a mine was never Whitcomb's goal. As long as they could sell compressed air undercutting machines, haulage was not their market. But when electric undercutting machines hit the coal industry Whitcomb now faced a problem. Their customer base could only undercut coal with compressed air. Competing coal mines with electric power could undercut coal and haul it out of the mine with the same power source. Whitcomb realized that if they could not offer their customers some way to also haul coal out of their mines they were at a severe disadvantage and it would only be a matter of time before they would be out of business. Some how they had to develop coal mine haulage that could compete against electric locomotives.
1

2

3

Steve OConnor posted four photos with the comment:
Whitcomb and the Illinois Coal Mining Industry - PART 4 - - - THE FIRST SUCCESSFUL INTERNAL COMBUSTION MINE LOCOMOTIVE - - - - When Whitcomb looked at mine locomotives the decision to build an I.C. was made by the son, William Card Whitcomb. The father, George had moved to California on account of his wife's health and Will had essentially taken over by 1900. Electric locomotives required a huge investment in boilers, steam engines to drive the dynamos, the dynamos themselves and miles of electric cables. These overhead cables were a source of sparks that could ignite methane (which is lighter than air) that accumulates at the ceiling where the contact wheel runs on the overhead wire in a coal mine. Also the rail had to be bonded as it carried current in it and it had to be carefully centered with the overhead wire which needed special hangers to attach to highly irregular mine roofs. Electric rail systems were by far the most expensive to build and maintain. COMPRESSED AIR LOCOMOTIVES - - - another option was compressed air locomotives but these also required immense investment in boilers, steam engines and high pressure air compressors. The large air tanks needed to sustain any kind of duration made these locomotives difficult to fit in coal mines and needed recharging stations throughout the mine. The increase of pressure to over 1,000 psi to improve range made maintenance a headache as piston seals would fail and connections leaked making these systems less than efficient. Also, these were already made by older, larger and experienced companies like the H. K. Porter Company and Baldwin that Whitcomb had no chance of competing against. So the only option was a new power source called the internal combustion engine. For Whitcomb, this would be powered by a new fuel, the byproduct of Kerosene production - gasoline. More to come.
Skip Luke Gasoline + mine = catastrophe.
Steve OConnor William Whitcomb and his chief engineer, William Eckert received patents for spark arresting exhaust systems to prevent igniting methane fumes in coal mines, and also engineered ways to safeguard the gasoline tank from impacts.
Steve OConnor https://patents.google.com/patent/US1055845
1

2

3

4

Steve OConnor posted three photos with the comment:
Whitcomb and the Illinois Coal Mining Industry - PART 5 - - - SUCCESS - FAILURE - THEN SUCCESS - - - Whitcomb's first gasoline mine locomotive was simply a car engine, clutch and transmission with a frame built around it that was shipped to the Kolb Coal Company in Mascoutah, Illinois and it only saw very light duty. The time was April, 1906. The appearance of their first generation locomotive and their second generation are vastly different due to the vertical car engine sticking up like a sore thumb. Because this first attempt continued to operate without any major problems they decided to build another one which was sent to Kentucky where the duty was much more severe. - - - FAILURE - - - That unit was a complete failure as it had to pull tons of coal up a grade. For about 3-4 years the owner was constantly having to rebuild it and eventually it was junked. During that time Whitcomb experimented with car engines, marine engines, different clutches and transmissions and finally designed and built their own engine - a flat four cylinder which gave the unit a much lower profile more fitting for a coal mine. Details completely lacking from all the literature about their new engine were the compression ratio and any details about the gasoline to be used. There probably was a reason for this. More to come.
1

2

3
Steve commented on his post
The coal mine where the first Whitcomb gasoline mine locomotive went.

Steve OConnor posted three images with the comment:
Whitcomb and the Illinois Coal Mining Industry - PART 6 - - - THE FUEL PROBLEM - - - The article from the July 19, 1913 Coal Age is the only one I can find where a Whitcomb engineer discussed the engine development problems on their first locomotives and details are few. But during research of the history of gasoline I found that others ran into problems also. - - - ENGINE BASICS - - - First, some basics about gasoline engines will help the reader understand what engine pioneers like Whitcomb were up against. Compression is the key to power and efficiency for an internal combustion engine. According to the Otto Cycle ( https://en.wikipedia.org/wiki/Otto_cycle ) the higher the compression the more power and efficiency you can get from the same amount of fuel. But, there is a limit to how high gasoline/air mixture can be compressed before it will create problems. Normally, gasoline burns at a controlled rate initiated by the spark plug so that when the piston is coming up on the compression stroke the expansion of the burning fuel is timed to push the piston when it is beginning to travel back down on the power stroke. But when gasoline/air mixture is compressed too high it will heat up and actually explode before the spark plug fires and the pressure wave will oppose the piston coming up on the compression stroke. This can place enough stress on the engine to damage parts or burn holes through the piston from the extreme heat. - - - OCTANE RATING - - - All gasoline sold today is measured and sold according to its octane rating ( https://en.wikipedia.org/wiki/Octane_rating ). But in 1906 when Whitcomb was trying to get a gasoline engine to survive the extreme duty of a coal mine, nobody knew anything about detonation or octane resistance to detonation. The Wright brothers had to use the same gasoline that cars burned in 1903 because aviation gasoline did not exist. In fact, when the U.S. entered WW I in 1917 we became the principal suppliers of gasoline for the Allies and combat planes started falling out of the sky because our gasoline was of inferior octane, but nobody knew that because nobody had developed an octane rating system. - - - STRAIGHT RUN GASOLINE - - - The gasoline of 1906 was a byproduct of the distillation of a crude oil from some oil field that was producing Kerosene. Kerosene was the prime objective, not gasoline because kerosene was how nations were lighting their homes. Gasoline production did not surpass Kerosene until 1916 in the U.S. The gasoline that companies like Whitcomb, the Wright Brothers, Ford, Harley Davidson, Dodge, etc. were stuck with was called a straight run gasoline that was a simple distillate and the quality was entirely dependent on what oil field it came from. This crap shoot could kill a pilot if he put an inferior gasoline into a fully loaded combat aircraft and tried to get it off the ground before he ran out of runway with his engine detonating. Whitcomb, like the Wright Brothers and Henry Ford, undoubtedly had to discover by trial and error how high they could push their compression ratio and still survive somebody running a tank of inferior gasoline through the engine. The octane rating scale would not be introduced until 1930 and every tank of gas before this was measured in terms of boiling points. Boiling points was a way to guess how well the gasoline would vaporize and vaporization was thought to be the single most important quality of a fuel. It is estimated that the octane rating of the gasolines that Whitcomb and everybody else had to use was down around 50 and this pushed compression ratios down below 4:1. More to come.
1

2

3

Steve OConner posted seven images with the comment:
Whitcomb and the Illinois Coal Mining Industry - PART 7 - - - THE MOVE FROM CHICAGO TO ROCHELLE. During this time Whitcomb had also engaged in building knitting equipment. I don't know how or why, perhaps one of their engineers came from the textile industry. All of the Rochelle newspapers from this era were destroyed in a fire and no company history covers this. Whitcomb's largest knitting machinery customer was Chicago-based Vassar Swiss Underwear Company. In 1903 Vassar was having Union troubles and as was common they decided to move to Rochelle after given a $22,000 gift as incentive. In 1907 Whitcomb moved to Rochelle from Chicago. The most likely reasons why they moved were they needed a larger plant, they needed rail access for their new locomotive line and staying close to Vassar kept that income fairly secure. Neither Vassar nor Whitcomb would have a union while in Rochelle. Vassar would leave Rochelle and move back to Chicago around 1913. Whitcomb after being bought would get a union around 1940.

1

2

3

4

5

6

7
Patrick McNamara SCABS
Steve OConnor This was a common practice back then. EMPLOYERS ASSOCIATIONS
"During the 1920's, citizens' committees were formed in a number of cities including Chicago, Cleveland, Detroit, and San Francisco. Generally they were formed by employers' associations in o
rder to raise funds, and to secure the cooperation of the nonemploying public, for an antiunion campaign. . . . . In Chicago, Cleveland, and San Francisco, citizens' committees, organized by employers' associations, raised millions of dollars to wage a campaign to eliminate the building unions. In such a campaign, building contractors, real-estate interests, and bankers were an important element in enforcing a buyers' and credit boycott against union employers in the industry (the citizens' committee is a device for organizing business groups to carry out a campaign against labor organization and the economic program of unions. It is usually a temporary organization, born out of the fear that labor organizations may have adverse effects upon local business, payrolls, and employment. Through such fear it is able to enlist the support of real-estate owners, professional persons, small retailers, farmers, and other nonemploying groups. Often economic pressure in the form of a threat by an employer or employers to move the business to another locality causes local business groups to organize and exert pressure upon local officials and public opinion in order to break a strike or to eliminate labor unions). . . . As the personnel manager of the Goodyear plant in Gadsden, Alabama, has explained, it is much easier to organize community sentiment in favor of a company in a small community than in a large one. That is true because a small community is so dependent on the company's payroll. . . . The effectiveness of the threat to move lies not only in putting economic pressure upon small, independent businessmen to oppose the union but in forcing the government officials to side with the company. As the experience of the Remington-Rand Corporation in Syracuse and Ilion, New York, during its 1936 strike indicates, it is easier for a company to sway public officials in small cities than in large ones. . . . Under demand from the Citizens' Committee group to cooperate or resign, the mayor and the chief of police of Ilion were forced to appoint and fully equip about 300 special deputies, after which "law and order" broke loose in Ilion. The mayor explained that, as one of the largest property owners in Ilion, he was afraid of the Citizens' Committee, which included the bankers, because "he could easily be a ruined man and have nothing left but his hat, coat, and pants if these people were to clamp down on him as they were able to do and in a manner which he felt fearful they would do." Some merchants also informed the union members that they feared retaliation by the Citizens' Committee unless they went along with that group).
Tactics similar to those of the Remington-Rand Company were used during 1935 by the Brown Shoe Company, third largest shoe manufacturing firm in the country. The Brown Shoe Company then operated 14 shoe factories, one in St. Louis and the rest in small towns in the Middle West where the plants had been built with funds subscribed by representative citizens. The typical agreement provided for a certain sum of money to be furnished by the citizens of the town for the erection of the factory, which the company uses free of charge and will later own when it has spent a fixed minimum sum for labor in the plant during a specified period, usually 10 years. Often there is provision for a rebate of all taxes, business fees, and water rates during those 10 years. Approximately one third of the company's machinery is leased from shoe-machinery manufacturers and the rest can be easily moved to another town. Groups of citizens in small towns around St. Louis are constantly seeking to obtain one of the company's plants for their community.
Under such circumstances, the payroll of the company is the town's chief source of income, and the merchants and public officials of the town, many of them subscribers to the fund for the erection of the plant, are deeply interested in keeping it open and in operation. The economic threat to close the plant and move the work to another small town is sufficient to frighten the whole community. It was the closing of the plant, the threat to move, or the actual movement of machinery, that led in 1935 to the formation of citizens' committees in four small Illinois towns where the company had plants. In these towns, pressure was put upon union members by such methods as withdrawal of merchants' credit, solicitation by the citizens' committee of workers' signatures to an agreement to return to work under "any conditions stipulated by the Brown Shoe Company officials," vigilante attacks upon union officials, and the discharge of union sympathizers by local businessmen. Labor spies and corps of special police were also used. As a consequence of such tactics, the union was eliminated from these plants of the company."
Richard A. Lester, Duke University
Economics Of Labor, 1941
p. 651-656

[The remaining comments are not worth repeating.]

Steve OConnor posted five photos with the comment:
Whitcomb and the Illinois Coal Mining Industry - PART 8 - - - HAULAGE PRODUCTION AND THE CHERRY MINE DISASTER. The only reference I have found to company history during the transition from Chicago to Rochelle is from an interview in the local newspaper in 1943 with William Eckert. He was the head of engineering for Whitcomb and what little information he gave in the interview is in this paragraph - - - "In the meantime Eckert had quite a deal to do with the improvement of the knitting machines, which at that time had its largest customer in the Vassar Knitting Company of Rochelle. Many of the machines are still in use. In 1907, Whitcomb decided to move from Chicago to Rochelle and the first factory was opened in the building now used by the Rochelle Furniture Co. Here the company grew in activity, shifting steadily from knitting machinery to stressing production of mining machinery and gasoline locomotives, and then in 1912 specializing only in the building of locomotives." - - - So Whitcomb's entire compressed air mining equipment product line was gone by 1912. Their entry into mine locomotives saved their company and this was accelerated by conditions in the coal mine industry. - - - THE CHERRY MINE DISASTER - - - On Saturday, November 13, 1909, nearly 500 men and boys and three dozen mules were working in the St. Paul Coal Company mine in Cherry, Illinois. An electrical outage earlier that week had forced the workers to light kerosene lanterns and torches, some portable, some set into the mine walls.
Shortly after noon, a coal car filled with hay for the mules caught fire from one of the wall lanterns. Initially unnoticed and, by some accounts, ignored by the workers, efforts to move the fire only spread the blaze to the timbers supporting the mine.
The large fan was reversed in an attempt to blow out the fire, but this only succeeded in igniting the fan house itself as well as the escape ladders and stairs in the secondary shaft, trapping more miners below. The two shafts were then closed off to smother the fire, but this also had the effect of cutting off oxygen to the miners, and allowing the “black damp,” a suffocating mixture of carbon dioxide and nitrogen, to build up in the mine. Eventually 259 men and boys died. The disaster stands as the third most deadly in American coal mining history. The increase in the next two years in conversion to mechanical haulage is the greatest by percent in the history of Illinois coal mines. Whitcomb was a direct beneficiary of this disaster.
Nick Koba Jr. from what I have heard they were stil useing mules at the caol mine in South Wilmington , Illinois when the mine shut down in 1954 and they were put into pasture in a fenced field on the North side of Rice Road as they were still alive and eating grass along the fence in 1967 when when I moved near there.
Steve OConnor Mules were a hazard. They could become uncooperative and backup a car and crush a man between them. It would be hard to blame the mules. The life of a mine mule was terrible. They spent most of their lives below ground and were often mistreated and neglected. The Society to Prevent Cruelty to Animals (SPCA) made mine mules one of their earliest concerns. https://www.historylink.org/File/8651

Steve OConnor HUMANE AGENT RESCUES BESS; TO MAKE ARREST

“Bess,” the mule which worked 24 hours a day in the Pacific Coast Coal Co.’s mine at Franklin, Wash., is enjoying a much-needed rest today as a result of prompt action by the King County Humane society, following publication of an article regarding her in The Star.

An arrest will be made at the mine today, as a consequence.

Fred L. Boalt, The Star’s special writer discovered “Bess” while “covering” a mine accident at Franklin. He found that the company worked its mules until they die; instead of getting more and working them in shifts. It was cheaper.

Mrs. S. C. Griggs, secretary of the Humane society, visited the mine with two officers Friday. She immediately ordered Bess to the barn.

“The mule had worked two weeks without a rest,” Mrs. Griggs said.
1

2

3

4

5
Nick Koba Jr. commented on Steve's post
Photo of the Cherry Mine display in the Cherry Library

Steve OConnor posted
Whitcomb locomotive, Pearl Harbor. During WW II these locomotives hauled munitions from the Naval Ammunition Depot Oahu to Pearl Harbor for the U.S. Navy. After December 7, 1941 photography at Pearl Harbor was strictly regulated and these photos were saved from a dumpster at a Naval office at Pearl Harbor.

Steve OConnor posted

Steve's comments in a posting about the Coal Valley Mining Company explains that one reason why mules were replaced by Whitcomb mine locomotives is that the hay in the stalls for the mules was a fire hazard: "The Cherry Coal mine disaster in Cherry, Illinois was started from kerosene oil dripping onto a hay stall for mine mules."

Steve is building an album of photos concerning the Whitcomb Locomotive. And he has an album with 72  photos of the building with the comment:
From 1907 until 1952, Rochelle was the place of manufacture for Whitcomb locomotives. These photographs were taken of the former Whitcomb factory in the summer of 2012 by myself. The interior photos were taken 10-24-2015 when Behr Metals owned and operated the building as a recycling business until closed at the end of October, 2015.

In the comments of this posting by Steve is several WWII Whitcombs.

Steve's posting has pictures of Whitcombs used to support Perl Harbor.

Flickr of a 75 tonner.  A Flickr Album of photos including Purdue's.
