CN/WC+DSS&A Bridges over St. Marys River between Sault Ste. Maries

(Bridge Hunter, Satellite)

Street View
(Update: A video of the Roger Blough passing the West Pier under this bridge. I'm learning it is an older boat because it has the bridge and crew quarters on the bow instead of the stern and because it does not have a self-unloader. There is also quite a bit of ice in the canal.)

From Michigan to Ontario, the International Bridge consists of a lift bridge for Locks 1 and 2, a dual-leaf Strauss Bascule for Locks 3 and 4, and a swing bridge over the Canadian lock. The four American locks are known collectively as the Soo Locks.

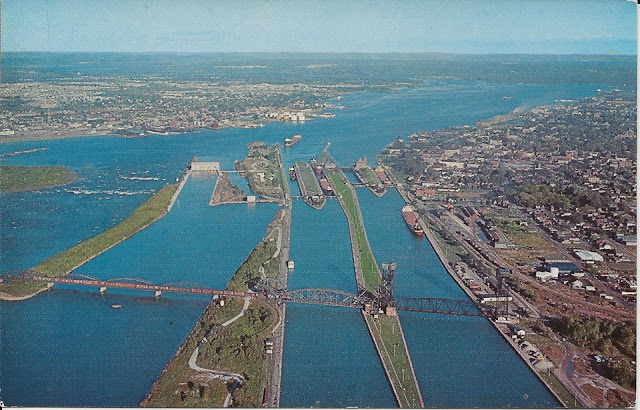

Before I do the individual bridges, here is a nice overview.
safe_image for Tribute to James Baughn



Starting on the Canadian side.

Edward Sewell posted
This a swing bridge over the Canadian Lock on the Saint Marys River in Sault Ste Marie, Ontario, Canada

James Yarduk posted, cropped
CN Railway Swing Bridge. Sault Marie Marie, Ontario Canada.
This swing bridge has been in operation since 1895 to span the Canadian shipping canal and link the railway to the United States on the south side of St. Marys River.
James Yarduk: Still active. They replaced the main support beams under the railbed about 4 years ago and upgraded the control system. In operation every day during canal season. They leave it in place across the canal in the winter months.
[James provided a 3:12 video of it closing in a comment.]

Roger Riblett shared three photos by James Yarduk.
1

2

3

D Eric Davis posted
Rotating bridge on the CN line spanning the St Marys River connecting Sault St Marie Ontario Canada with Sault Michigan America.

Joe Granger posted 23 pictures of the Canadian side with the comment:
A few more high quality photos of some of the spans at the International Bridge between Sault Ste. Marie, Michigan and Sault Ste. Marie, Ontario. The swing span and trusses are from 1888, built jointly by the Soo Line, DSS&A and Canadian Pacific. The Bascule Bridge, the largest ever built, is from 1919, and the lift bridge was built in 1954 to replace another swing span. The red swing bridge is the last surviving emergency swing dam and still is swung twice a year. The bridge is now owned by CN. The bascule span is not opened anymore as the 3 and 4th lock are currently closed until a new lock is built.....whenever congress approves the funding. The project was approved decades ago, but they haven't released the funding.
Twice a day the bridges are closed for a train
More postings by Joe: an Oopsie Doodles with the lift span, after an accident with the bascule bridge, one leaf of the bascule being raised., all three movable spans, a video of the lift closing for a train then going back up for a boat, includes some detailed shots of the swing bridges gearing and lock pin, and a set that includes some downstream views of the dam, 9 photos of the swing bridge


Dan Barber posted (source)
Circa 1909 - Sault Ste. Marie: the Sabin Lock empty.
[A nice view of the double-bascule bridge.]

Eric Brighton posted

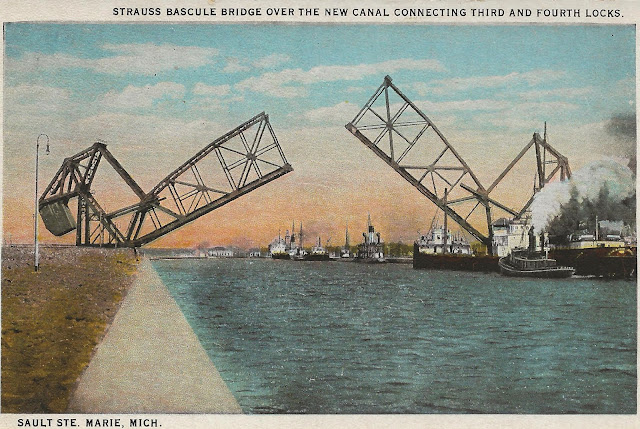

This rare 'Double Leaf Heel Trunnion Bridge' was built by the Strauss Bascule Bridge Company for the Canadian Pacific Railway in 1919. It was the longest bridge of its kind in the world at 336 feet. The crossing spanned the U.S. Ship Canal in Sault Ste. Marie, Michigan.

Eric Brighton commented on his post
Disaster strikes the bridge in 1941.
Ray Schloss Eric Brighton hellava handbrake on that boxcar!

Richard Wicklund posted

Brian Wellwood posted 13 photos of boats using the American locks. I include the two that show the bridges in the open position.
1

12
Bill Suggitt posted six photos, some of which have the bridges in the background, with the comment: "Manitowoc's working the Soo Locks, Sault Ste Marie, Mi."

1

2

3

4

5

6
Billy Hanners commented on Bill's posting
View from Tower of History.
Joe Granger posted
Sault Ste Marie Michigan. Taken today [6-24-2017] during the bridge walk. Worlds largest draw bridge. Former Soo Line now CN

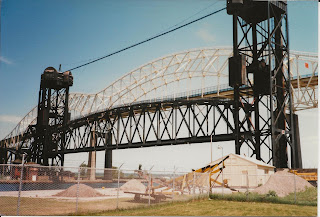

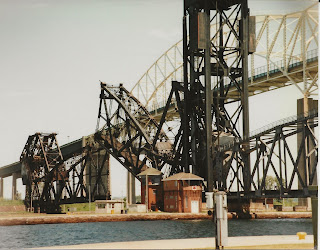

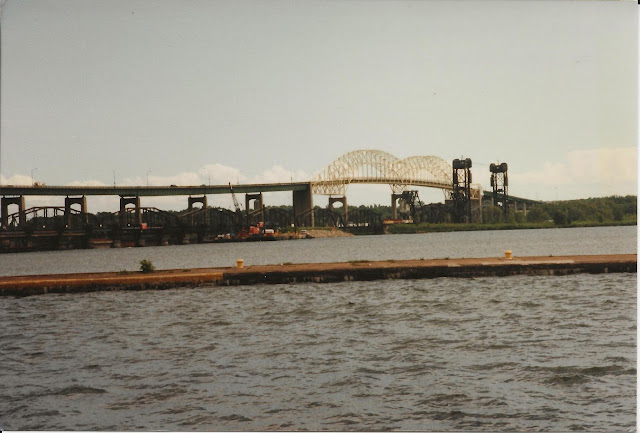

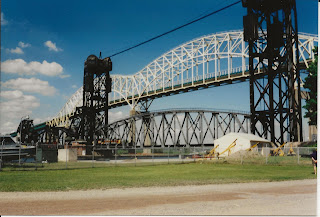

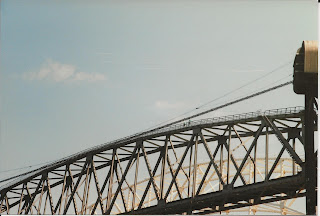

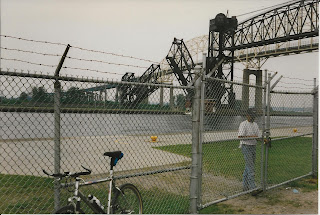

Joe Granger posted 16 photos with the comment:

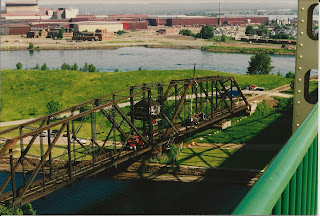

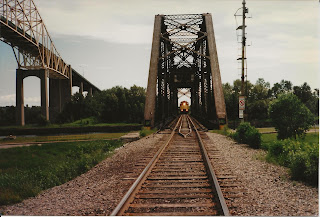

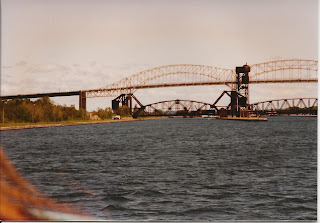

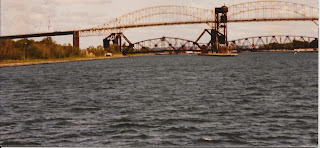

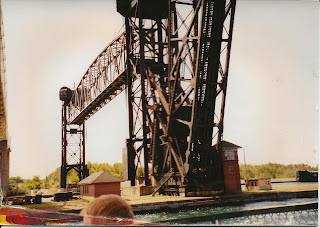

Scanning old photos. Most from 97. The bascule is the largest ever built. Sault Ste. Marie, Michigan. Former Soo and DSS&A.
The entire bridge has a swing, double bascule and a lift span, as well as 9 trusses.
Bill Wischer Actually, it's a double Strauss heal trunnion bridge, which is quite rare- there's one in Sweden crossing a canal as well. Strauss designed 100 bridges- the last of which is the Golden Gate Bridge.


1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16
[This has to be old because there is no road bridge.]
Joe Granger posted

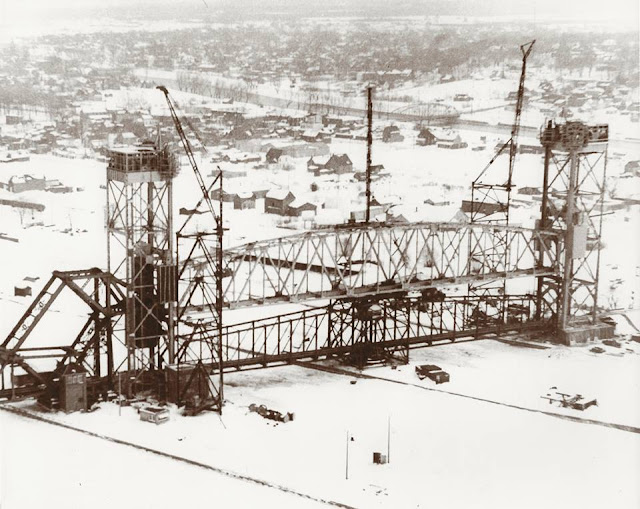

Building the new Soo Line lift bridge at the Soo piggyback on the old swing span.
Joe Granger posted
One of two massive counterweights on the worlds largest bascule bridge. Soo Line DSS&A and CP jointly built. Now CN. Sault Ste. Marie, Michigan to Sault Ste. Marie, Ontario.

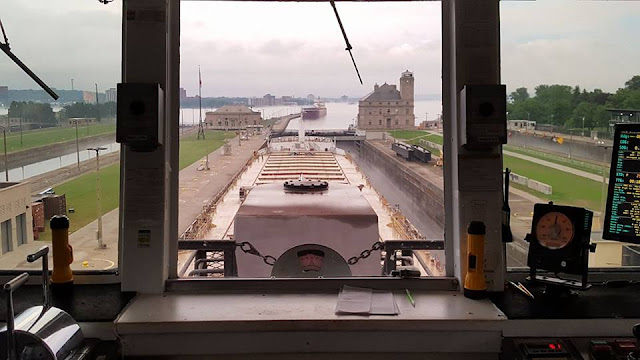

Joe Granger posted nine photos with the comment:
1888 trusses, 1911 Bascule and 1954 lift span. Taken by a friend from a 1000’ freighter having just come through the Soo Locks and passing into Lake Superior.
Originally built by the Soo Line and Canadian Pacific jointly, there’s also a swing span out of frame on the 2 mile long series of bridges between Sault Ste Marie, Michigan and Sault Ste Marie, Ontario.
The bascule bridge is 338’ long and the largest bascule bridge ever built.

1

2

3

4

5

6

7

8

9
Joe Granger posted
Sault Ste Marie, Michigan
Dennis DeBruler So they closed the road bridge to traffic so pedestrians could use it? What an opportunity to take photos.
Joe Granger Dennis DeBruler this was the bridge walk. Once a year. [The photo was taken in June.]
Joe commented on his post
Dennis DeBruler In the background it looks like there is still an operating blast furnace. That is becoming more rare in North America. https://www.google.com/.../@46.5199358,-84.../data=!3m1!1e3
Joe Granger Dennis DeBruler Canada’s largest steel mill Algoma
Joe Granger posted two images with the comment: "The old swing span over the American canal at Sault Ste Marie, Michigan and showing the new lift span being constructed piggy back during the winter when the Soo Locks are closed. 1888 built jointly by Soo Line and CP."

1

2
Joe Granger posted
Worlds largest bascule. 1913 and 339’ long. Jointly built by Soo Line and Canadian Pacific. Now operated by Canadian National. Sault Ste Marie, Michigan and Sault Ste. Marie, Ontario.
I took this in 1997.
Carlton Crasher commented on Joe's post
Taken November of '18
Joe Granger posted two photos with the comment: "Last days of the Soo Line in its namesake city, Sault Ste. Marie. Crossing the worlds largest bascule (1913) and the 1960 lift span. 1985."

1

2
Gerald Vilenski posted
International Railroad Bridge in Sault Ste. Marie, showing a freighter passing underneath, date unknown...
Art Gage Not just a freighter, the Alpena one of the oldest ones still sailing.

Three of the photos posted by David Kaye with the comment: "Another frosty morning in the Soo. 3-8-19."
a

b

c

The many trusses north of the movable spans
David Kaye posted
CSL Welland in the Poe Lock

Patches Croteau shared
Jimmy Polnick: Hey that's the Sault internation train bridge! That's my backyard lol there is like 5 different types of bridge in that span. A lift, a bascule, a swing, a plate girder over pass and 9 camelback spans. It was built in like 1893 or so. At one point it was 2 swing bridges, a plate girder overpass and 13 or so camelback a but the expansion of the Sault locks resulted in one swing bridge (on USA side) to get replaced by a vertical lift bridge. They actually built the vertical on-top of the swing bridge so the amount of time it was down would be minimized.

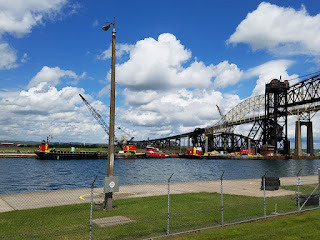

One of four photos posted by Sarter Marine Towing


(new window)  A video making me appreciate the draw bridges around here are a lot faster.
"Built in 1919 , this 339’ behemoth still holds the world record for largest draw span. It is one of several spans on the International Railroad Bridge between Sault Ste. Marie, Michigan and Sault Ste. Marie, Ontario. It was jointly built by the Soo Line, Duluth South Sore & Atlantic, and the Canadian Pacific"



Joe Granger posted 6 closeups of the two US RR bridges with the comment: "Some photos of the 1945 Art Deco-ish machinery house and the worlds largest draw bridge (1913) at Sault Ste. Marie"

Joe Granger posted a video of the bridges (and dams) from the perspective of a bus ride after a tour was over.

A 2x video of a laker going upbound under the bridge (source).

Joe Granger posted 8 photos of the lift bridge.

Joe Granger posted five photos of a CN train using a leased BNSF unit crossing the bridge.

Joe Granger posted 28 photos of the Canadian side including the emergency swing dam.

Joe Granger posted 9 photos from someone on a 1000-footer.

David Kayne posted 10 photos of a BNSF train crossing the bridges on 3-19-19.

A video of a train crossing the bridge. The train appears are 0:30.

17 drone photos with the bridges up and down   and a video of the bascule going down   The video includes a couple of USACE dredgers working on the canal to the new lock. In this case, the dredgers are excavators working from barges. In the background, a downbound is leaving the Poe Lock while an upbound is waiting by the wall. An upbound sat in the MacArthur Lock for the entire duration of the video.
