[The lower pool looks high, so why aren't the gates up?] |
According to
USACE, the upper and lower pools are normally 383' and 358', giving a drop of 25'. "
The project was approved as a replacement for existing Locks and Dam 43, 44, and 45 on January 27, 1960."
A 15-barge tow showing off the 1200' capacity of the Ohio River locks.
 |
Michael Haynes posted
Michael Haynes Cannelton locks & dam. 2 4000’s @ 125 tons, 2 39A’s, 2 71-B’s, a 54-B, a steam derrick boat and 2 Clyde Whirley gantry’s. That’s all it took to build locks and dams
Darrin Liegel Michael Haynes Didn’t know they made a 4000 rated@ 125 ton
John George 125 ton 4000’s were non W’s. I think there were 125 ton vicons. The 125 were 24’ long and 17’ wide. W’s were 24’ long and 21’ wide |
 |
Robert Flannery posted, cropped
Dredge Bill Holman Canelton Lock and Dam Ohio River 2021
Ryan Sturma: Not even a photo credit. For shame...
Robert Flannery: Ryan Sturma yes you took the photo
[The dredge is on the left in the lock channel and the pipeline moves the slurry to the discharge in the middle of the river.] |
The cutter head of the Bill Holman.
 |
Street View, Oct 2008
It appears the hydropower plant has yet to be built. I added Global Earth views below. |
Ryan Burleson
posted three photos with the comment: "

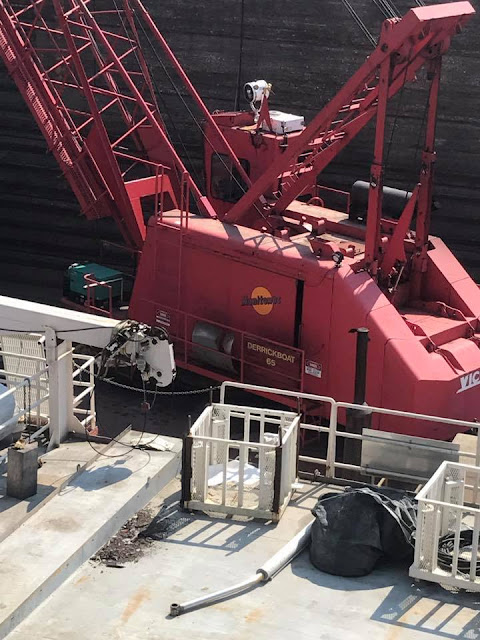

Found these working at the Cannelton locks and dam. I'm fixing the RT in the bottom of the lock."
 |
| 1 |
 |
2
39w. Sure looks nice yet |
 |
3
Long walk for tools, isn't it!
Yes sir. About 5 stories of stairs and the length of a lock twice. That's just one way. I did a lot work with 1 pair of pliers. Lol
Ryan Burleson I'll bet, I always carried a pair of channel lock in my back pocket. |
When I looked at the satellite image, I noticed this dam has already had
a 3-bulb, 88-MW hydro power plant added on the side. This reminded me to check the status of
the hydro power plant being built next to the Smithland Dam. The 2017 satellite image has not changed from the one copied in the posting. The Bing image is old enough to show the Cannelton plant still being constructed.
Now that I've learned how to use Global Earth as a time machine, I can include more views of the construction. It is also interesting to see the different river flows and tow activity.
 |
| Oct 2008 |
 |
Aug 2010
I'm surprised how much debris has been allowed to build up against the gates. I assume it is too risky to take construction equipment on a barge that close to the dam during a high river flow. In addition to the travelling gantry on top the dam, it appears they need a travelling crane that would allow them to lift debris up and over the dam. Submersible tainter gates are normally used to allow ice to flow through the dam. But they should also be able to allow debris to flow through the dam since these are 100' gates. |
 |
| Oct 2013 |
 |
| Jun 2016 |
