Goose Island: Milwaukee's Z-2 (Cherry Avenue) RR Bridge

(Bridge HunterHistoric BridgesJohn Marvig (includes a short history of the Milwaukee Road), HAERSatellite)

20150502 0600

ChiLandmarks has two photos and the text:
The Chicago, Milwaukee & St. Paul Railway Bridge No. Z-2 is a rare asymmetrical "bobtail" swing span bridge from the late 19th century. Its significance lies not only in its design, but in the role it played in the historic development of Goose Island, carrying the only rail line to the island. In addition, the bridge once carried limited vehicular traffic, making it perhaps the only surviving bridge in Chicago that served combined modes of transportation. The bridge's superstructure is made from 210 tons of steel, with a concrete counterweight weighing 140 tons all of which rest on a circular nest of 40 wheels that support the entire weight of the bridge. When in operation an electric motor engaged the gear mechanism, forcing the span to rotate and swing towards the shoreline. The bridge owes the necessity of its existence to a canal built by William Ogden, Chicago's first mayor, who was the primary backer for its construction in the mid-1850s. The canal allowed the island to function as an industrial core for Chicago, with tanneries, grain elevators, a coal yard and steel mill. Today the bridge's operating mechanism has been disabled and since larger craft no longer use the waterway, the bridge remains locked in position. In 2009, the bridge was restored by the Chicago Department of Transportation and pedestrian and bike paths were installed on the span to connect North Avenue to Goose Island.
1

2

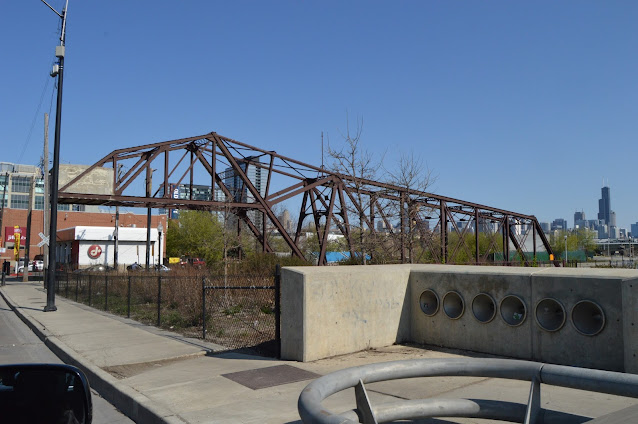

Milwaukee Road built Z-2 in 1902 to provide rail service for the heavy industry that was on the island for a significant part of the 20th century. As my daughter drove me East along North Avenue, I grabbed these pictures. Chicago Terminal Railroad uses this rail so infrequently (video1, video2) that this bridge is now shared with pedestrians and bikes. The author of the first video extracted a still on Flickr of a single empty lumber car heading back to C&NW yards for interchange. That is because the only remaining rail-served customer on Goose Island when I took these pictures was a lumber yard near the south side of the island. Since then, that lumber yard quit using rail service. The bridge was rehabilitated in 2009, so hopefully it will remain as a pedestrian and bike crossing.


I learned during the May 2015 trip that the weekend traffic is light on Goose Island except for Division Street. So I had planned to go back but take I-94 to Goose Island, park on Goose Island, and walk around this bridge. So I took advantage of a mild December Saturday to get some more pictures. It was a cloudy day, but sometimes I think diffuse lighting is better for taking pictures of truss bridges.

20151212  7580
I parked where Cherry Street dead ends near the bridge. You can see the bridge in the background between the SUVs. The track curves from running along the side the road back to running on the old street's right-of-way.

7483

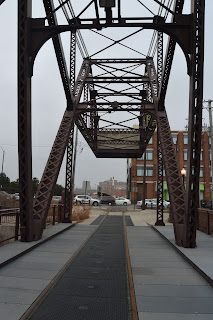

The south portal.

b-20 c-20

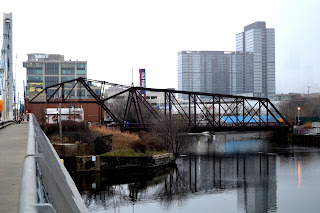

Note the North Street Bridge in the background. The double tension members near the end of the span is probably because the loads on the trusses are different when the bridge is closed and being supported by the bridge abutment vs. when it is open and being supported by the counterweight and pier. The bridge needs to be stronger when closed to support the weight of a train going over it.
On the north side they built a special viewing area that lets you see the pier.

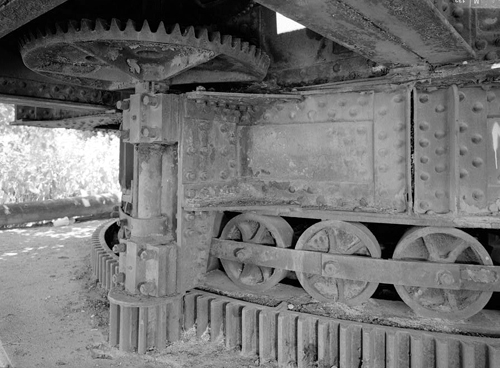

Unfortunately, every time I lean over a rail to take a picture, it comes out crooked. Nonetheless, you can see this is a bobtail swing bridge. That is, the pier is on a bank and a 140-ton counterweight leveraged by an overhead offset span is used to balance the 120-foot span over the river. You can see some of the 40 wheels that allows the bridge to turn on the pier.

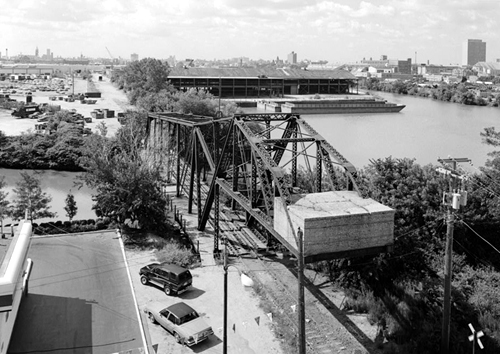

The is the overhead offset span with the counterweight.

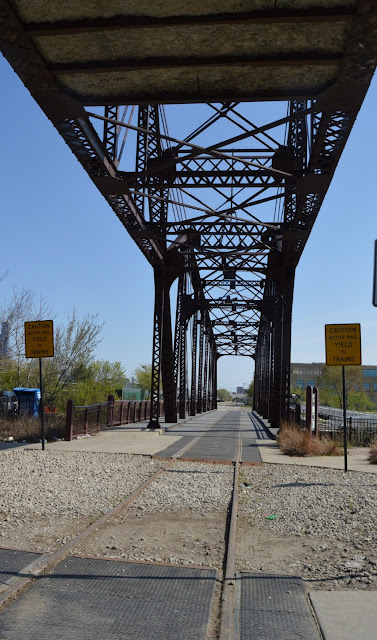

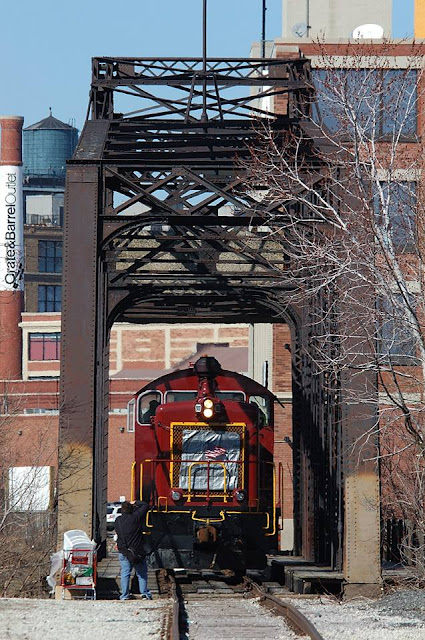

A view of the offset span from inside the bridge. The cars are on North Avenue, and it is always four lanes of bumper-to-bumper traffic. One of the videos shows a crewman had to get off the engine to stop that traffic because a loud horn and bit locomotive was not intimidating enough to convince the drivers that they should yield to the "train." (It had just two cars.)

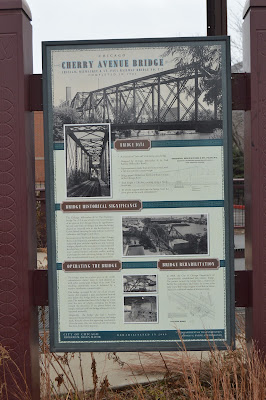

Most of the factoids in this sign I have incorporated into the narration. At the bottom of this posting is the detail in the lower-right corner of the sign. They should have used a blacker ink for the sign.

Gimp contrast +40


(For future reference, the video shows more territory covered by the Chicago Terminal "train.")

Street View
Update:
Tommy Thompson posted

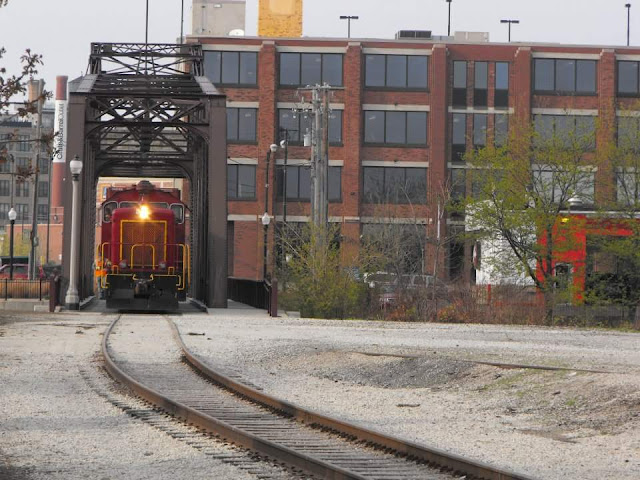

Chicago Terminal having just crossed North Avenue- April, 2012.
Kevan Davis commented on a post
Here is my photo from the early 90's with the bridge tenders shack still intact. http://chicagoswitching.com/.../Akzo-Salt-Soo-Line.../...
Dennis DeBruler And back when the train had more than just lumber cars.
AJ Grigg shared
Cherry Ave bridge in Chicago, IL, connecting Goose Island to North Ave. An asymmetrical “bob-tail” swing bridge, it was originally built by the Milwaukee Road. In 2009, it was restored and used as a shared pedestrian and railroad bridge. In 2018, the Chicago Terminal Railroad ceased operations.
Bill Smotrilla This is a great video of how they operate that bridge before they did some repairs to it. Really Old School. https://www.youtube.com/watch?v=D-URgBbzMps
Bill Smotrilla Oops,. different bridge, but similar type.
Will commented on AJ's post
Hard to believe that this shot is almost 5 years old.
6/24/2014
Rob commented on AJ's post
Dennis commented on AJ's post


Glen Miller posted

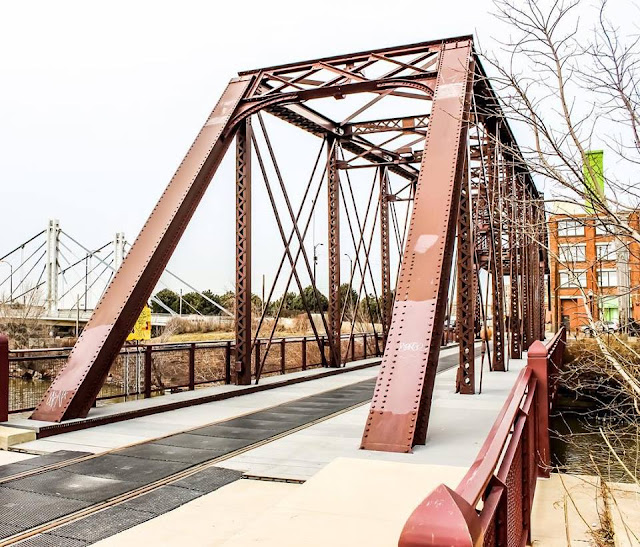

The Cherry Avenue Bridge (North Avenue railroad bridge), was built in 1901-02 by the Chicago, Milwaukee and St. Paul Railway. It is the only railroad access to Goose Island crossing over the North Branch Canal of the Chicago River, which when dug by William Ogden, Chicago's first mayor, formed Goose Island in the 1850's The bob-tail swing bridge is no longer operable but was refurbished in 2008-09 as is now owned by the City of Chicago. A sidewalk for pedestrians and a bike path was added and is cantilevered from the east side of the bridge. In 2013, Chicago Water Taxi installed a dock at the southwest side of this bridge on Goose Island. They operate service between Madison Street and the bridge and it passes under a number of historic North Branch bridges on the way. Designated a Chicago Landmark December 12, 2007.
Robert Daly shared
Paul Webb shared
Dennis DeBruler shared

Dennis DeBruler commented on his share
And this is what it looks like looking South. I took this on May 2, 2015, and trains were still delivering lumber to the south side of Goose Island.

Dennis DeBruler commented on his share
It is a bobtail bridge, which means an asymmetric swing bridge. The big counterweight allows the pier to be on the north shore to maximize the width of the navigation channel.

Dennis DeBruler commented on his share
There used to be a lot of heavy industry, including a steel mill, on Goose Island. What is now the 606 Trail, https://www.the606.org/visit/maps/, was a Milwuakee Road route that went East across the river and then Southish to its bobtail bridge just north of Kinzie. Among other things, this route served the Montgomery Ward warehouse (catalogue fulfillment center),
The Evanston branch left this route near North Ave and crossed Clybourn Ave. to head North. It was this Evanston branch that went past the west side of Wrigley Field.
1953 Chicago Loop Quad @ 24,000


Rob caught a clear view across the road as the private rail car Caritas was being pulled off the island.

Mike Mihaly Janusek posted several photos of the bridge.

4 photos  some comments discuss the tank car storage ownership fight in 2017. The city finally bought it in 2018.
