In 1825 the Louisville and Portland Canal Co. obtained a charter from the Commonwealth of Kentucky to build a bypass canal, which opened Dec 22, 1830. "As originally constructed, the canal was 1.9 miles long, 64 feet wide, and had at its lower end a 3-flight lock with a total lift of 26 feet. Each chamber was 198 feet long between miter posts, with available length of 185 feet, a width of 50 feet, and a lift of 8.7 feet. The canal had a depth of 3 feet at low water stage. At the time the canal was completed, its dimensions were thought to be sufficient for all time, but by 1852 only 57 percent of the craft in use on the western waters could pass through the locks. In June 1874, the War Department, Corps of Engineers, assumed the supervision of navigation. In 1880, navigation was made free of any traffic charge. Various improvements and alterations were made until they culminated in a combined navigation and hydroelectric development. This development was completed in the 1920s, and formed an integral part of the canalization of the Ohio River....In the 1960s, the canal was widened to 500 feet, the 1200 foot lock was built, and the present dam was constructed." [USACE-history] "The locks have the highest lift (37 feet) of any of the locks on the Ohio." The first Louisville & Portland Canal with a three-lift lock system was built in 1830. The canal and locks were enlarged in the 1860s and 1870s. The 360x80 locks completed in 1872 were the largest in the world. In the 1920s a 600x110 lock with a 200' canal was built as part of the 51 locks and dams project. This became lock #41. In 1961, the 1200x110 lock was completed and the new dam was done in 1964. This era also saw the canal widened to 500'. To meet future needs, replacing the 600x110 lock with a second 1200' lock was finished in 2009. [booklet, p2,3]
 |
| Joseph Schneid posted This outstanding image shows the Patrick J Hurley in the McAlpine locks. This is from the Ann Wallace Shropshire collection at the UofK Library. In the McAlpine Locks at Louisville, Kentucky BOAT DESCRIPTION: Sternwheel BOAT TYPE: Towboat BUILT: 1927 at Dubuque, Iowa by Dubuque Boat & Boiler Company FINAL DISPOSITION: Dismantled, 1951 OWNERS: 1930: Federal Barge Line OFFICERS & CREW: 1940s: Captain Roy Wethern (master); 1948: Captain William S. Pollock and Captain Roy L. Hughes (masters) RIVERS: Mississippi River; Ohio River OTHER INFORMATION: Ways - T2007; She ran under charter for MVBL in 1948 in the upper Ohio River Port of St. Louis, MO. UofK Library Shropshire, Ann Wallace. collection |
In the Summer, when the river flow is low, the difference between high and low pools can be significant.
During the wet seasons (Spring and Fall), the lower pool is closer to the height of the upper pool. I've learned that Spring on the Ohio River evidently starts in February in terms of river levels.
 |
| George Moore, Jul 2018 |
During the wet seasons (Spring and Fall), the lower pool is closer to the height of the upper pool. I've learned that Spring on the Ohio River evidently starts in February in terms of river levels.
 |
| John Smithe, Apr 2019 |
 |
| D.H. Golden Jr. posted STEEL TRADER SHORTLY AFTER HER OBL DAYS IN MC ALPINE WALKER TOWING BOAT LIGHT BOAT PIC BY BILL ALDEN Ray Fancher: Looks like they’re double locking. Joseph Schneid: Ray Fancher At that time the aux lock was only 600’ Michael Gore: Ray Fancher I'm thinking the Walker Towing Co. boat (seen light boat) pulled the STEEL TRADER's first cut. |
A view looking upbound instead of downbound.
 |

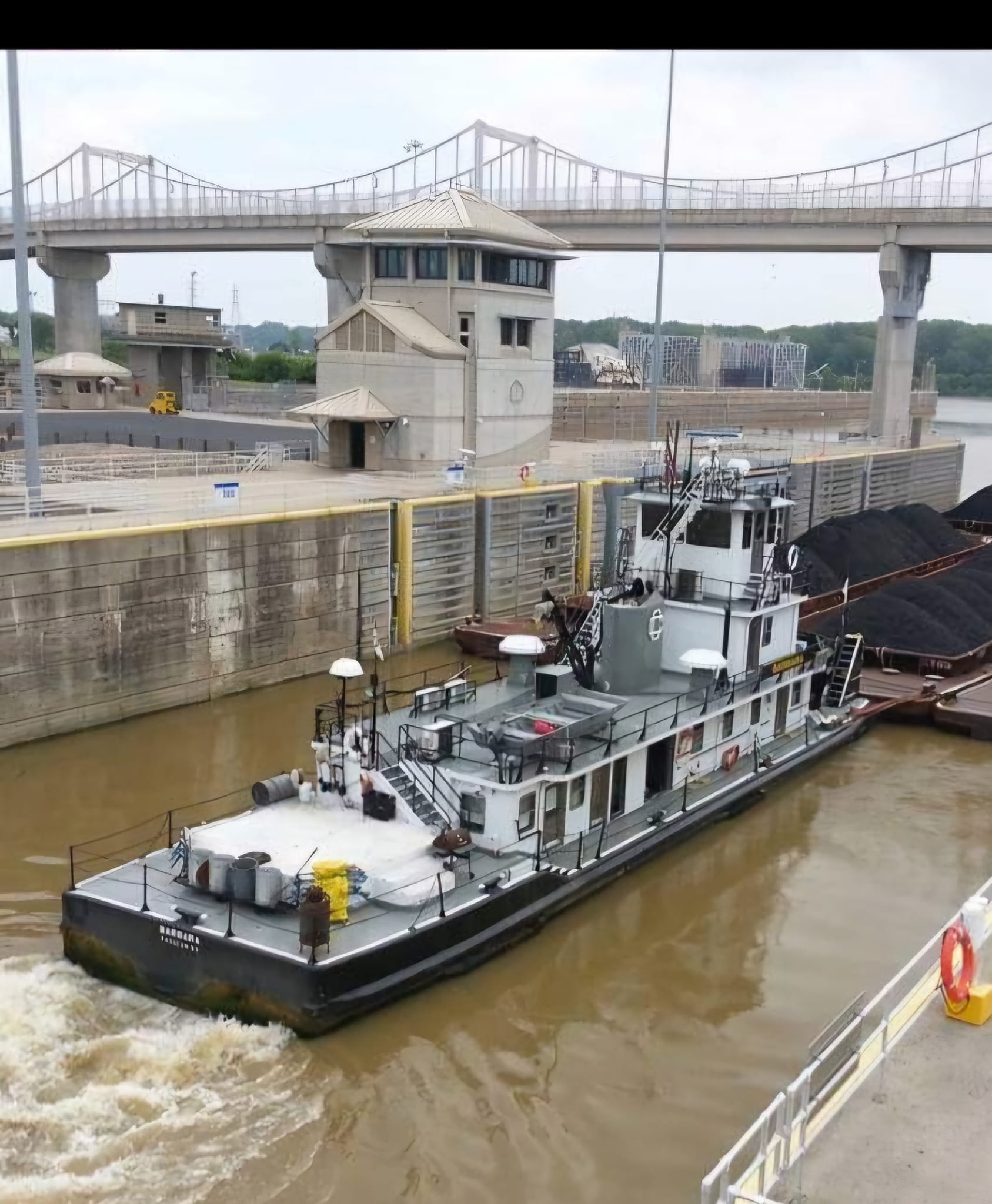

| Barkley Nash posted Crounse boat northbound out of McAlpine. Dale Zubik: I was told the boats were named after the Secretary’s in the office ? ! ( Could be Wrong ? ! ) Barkley Nash: Were they 1800 HP? Harley Thomas: Barkley Nash Yes they had GM EMD-16-645 E6 1800 HP |
 |
| Jake Silverdale posted, cropped Flying over McAlpine Lock and Dam on the Ohio River near Louisville. Jake Silverdale: A little hard to see but 2 lock chambers 110’ wide 1200’ long. |
During a flood, the pools are practically at the same level. The water in the middle between the yellow striped wall and the next wall over is in the lower pool.
 |
| no one, Feb 2018 |
 |
| no one, Feb 2018 |
 |
| no one, Feb 2018 |
 |
| no one, Feb 2018 |
I'm going to have to make a field trip and note if the fat white line is at the top of the lock walls. And look around to see what was under water when it was at the top line.
 |
| Jim Carey, cropped, at posted resolution |
 |
| David Gulden posted DENNIS NEWMAN AT MC ALPINE. LATER THE SHERMAN A WAXLER Ervin Rineheart: I hated having a hip barge on the starboard side shoving through the Conrail (L&I) bridge. Michael Gore: Remember her as the ALBERT F. HOLDEN. When the DENNIS NEWMAN, I rode with Capt. A.C. Shelton in the TVA coal trade from Overland Coal Uniontown, KY to Cumberland City Power Plant, mile 103 Cumberland River. Capt. A.C. was a great guy! [In the far background, peaking above the trees, we can see the two trusses of the L&I Bridge.] |
An upbound tow leaving the Portland Canal.
 |
| David Gulden posted The WARREN shoving out of the portland canal ole girl has a wide bottom deck |
And a downbound tow headed to the Portland Canal.
 |
| David Gulden posted LEONIDAS POLK IN LOUISVILLE Kevin Kellerkern: That's an old picture! The Zachary Taylor hasn't been docked with the Belle for a long time! David Gulden: Kevin Kellerkern late 80s |
Four photos from Massman's project page
This joint venture project for the Corps of Engineers involved replacement of existing 300-foot and 600-foot locks with a new 1,200-foot lock on the Ohio River as well as replacement of existing swing and bascule bridges with a high clearance fixed span highway bridge. Construction also included installation of the culvert valves, upstream and downstream miter gates, installation of updated PLC controls for the lock operating systems, demolition of the existing cofferdam, and construction of the Upstream and Downstream Approach Walls. With over 450,000 cubic yards of concrete and 12 million tons of reinforcing steel, the McAlpine Lock helps relieve a major bottleneck on the Ohio River.
 |
| 1 |
 |
| 2 |
 |
| 3 |
 |
| 4 |
Below are Global Earth snapshots of the construction.
 |
| 199804 |
 |
| 200212 |
 |
| 200308 |
 |
| 200309 I included this one even though it is just one month later because it shows a tow with just 12 barges. I wonder why they didn't shove a full 15-barge tow. It appears to be a pure coal tow. |
 |
| 200311 |
 |
| 200411 |
 |
| 200503 |
 |
| 200509 |
 |
| 200606 |
 |
| 200607 |
 |
| 200708 |
 |
| 200810 |
 |
| 202006 |
 |
| 201008 and 201205 |
 |
| 2013411 |
I was shocked to see in a satellite image that a second 1200' long lock had been built here. I became even more shocked when I learned this construction was done while the Olmsted Dam was draining the funding resources for new lock and dam construction.
The Water Resources Development Act of 1990 authorized the McAlpine Locks Replacement Project. This work replaced the 600’ and 360’ locks with a 1200’ x 110’ lock on the Kentucky bank side of the Louisville and Portland Canal adjacent to the existing lock. This gave the McAlpine project twin 1200 foot locks for efficient movement of projected increases in tow traffic. In addition, the existing swing and bascule bridges were replaced by construction of a two-lane, high fixed span concrete bridge to provide access to Shippingport Island and the Louisville Gas and Electric hydroelectric generating station. The new lock was completed and opened April 2009. [USACE-history]Work was stopped on the expansion of the Chickamauga Dam in Chattanooga because the Olmsted Dam was sucking all of the construction funding. (Work has resumed because Congress agreed to use general funds to help build locks.) And it would seem that the Kentucky Dam getting its first 1200' lock should have been higher priority than a second 1200' dam at this location. The post below reminds me that the Soo Locks need another lock that is big enough to handle the 1000' footers.
 |
| USACE Ships wait to enter the Poe Lock during summer 2015 during a traffic backup caused by unexpected repairs to the MacArthur Lock. "The Soo Locks can’t accommodate 1,000-foot freighters today, Sept. 10, [2019,] since its largest lock is out of commission for emergency repairs. This is the second quick fix on the Poe Lock in about two weeks, UpNorthLive reports. The closure could cause a backup at the shipping channel....The Poe Lock is scheduled to be closed to navigation in order to complete repairs to the Upstream Gate 1 sill today, September 10, 2019. The lock is expected to be closed to traffic for approximately 12 hours, beginning at 9am to allow divers to safely make repairs. Concrete grouting of the sill is required to mitigate the risk of further concrete degradation. A more permanent repair will be made during the winter shut down period when the lock is de-watered." |
Digging deeper, the NY Times graphic below reinforces my shock. Using a satellite image, I verified that the Olmsted Dam is being built with two 1200' locks. That makes sense since it will handle the highest tonnage in the US. I should point out that #52 and #53 were effectively above capacity because, as the NY Times article explains, queuing delays to lock through were in terms of days, not hours. But the increased capacity of McAlpine can't be effectively used until the capacity of the other lower Ohio River dams is increased. Was the McAlpine funding based on the power of a Congressman winning pork barrel money rather than need? I am confused why the tonnage through the John T. Myers Locks is significantly lower than the downstream (Smithland) and upstream (Newburgh) locks. Is that because the Mt. Vernon port (coal and EVWR traffic) handles a lot of upstream traffic?
By The New York Times (2016), Source: U.S. Army Corps of Engineers
I found some interesting info concerning some locks, but it doesn't include McAlpine. Given that it includes #52, #53, Chickamauga, and Kentucky, maybe this report is about just "problem" locks.
I'm not the only one who thinks the USACE funding priorities seem stupid. This report says the Corps is proposing to add a second 1200' lock to the J. T. Myers Locks. But we have already seen that it is the least used lower Ohio River lock. The report also points out that the Corps has been ignoring that the coal traffic is going away. It continues to overestimate lock usage. I was not able to find the type of usage information that NY Times found by looking at USACE web site.
The Tennessee-Tombigbee Waterway is another example of the USACE overestimating usage and underestimating cost to get approval of a project. In this case $2 billion was spent on a project that continues to carry significantly less cargo than was predicted.
By The New York Times (2016), Source: U.S. Army Corps of Engineers
IND.
ILL.
KY.
57
MO.
Area of detail
24
Lock and Dam 53
TENN.
Lock and
Dam 52
ILLINOIS
Smithland
Lock and
Dam
Cumberland R.
Olmsted
Locks and Dam
Paducah
(under construction)
Calvert City
Cairo
Tennessee R.
MISSOURI
KENTUCKY
5 MILES
Most-used locks and dams of the inland navigation system
2015 TONNAGE
SITE
LOCATION
RIVER
IN MILLIONS
Lock and Dam 52
Brookport, Ill.
80.8
OHIO
Lock and Dam 53
Grand Chain, Ill.
72.3
OHIO
Soo Locks
Sault Ste. Marie, Mich.
69.6
ST. MARYS
Newburgh Lock and Dam
Newburgh, Ind.
69.1
OHIO
Smithland Lock and Dam
Hamletsburg, Ill.
63.7
OHIO
McAlpine Locks and Dam
Louisville, Ky.
62.0
OHIO
Cannelton Locks and Dam
Cannelton, Ind.
61.8
OHIO
Lock and Dam 27
Granite City, Ill.
60.3
MISSISSIPPI
John T. Myers Locks and Dam
Mt. Vernon, Ind.
56.5
OHIO
Melvin Price Locks and Dam
East Alton, Ill.
53.7
MISSISSIPPI
 |

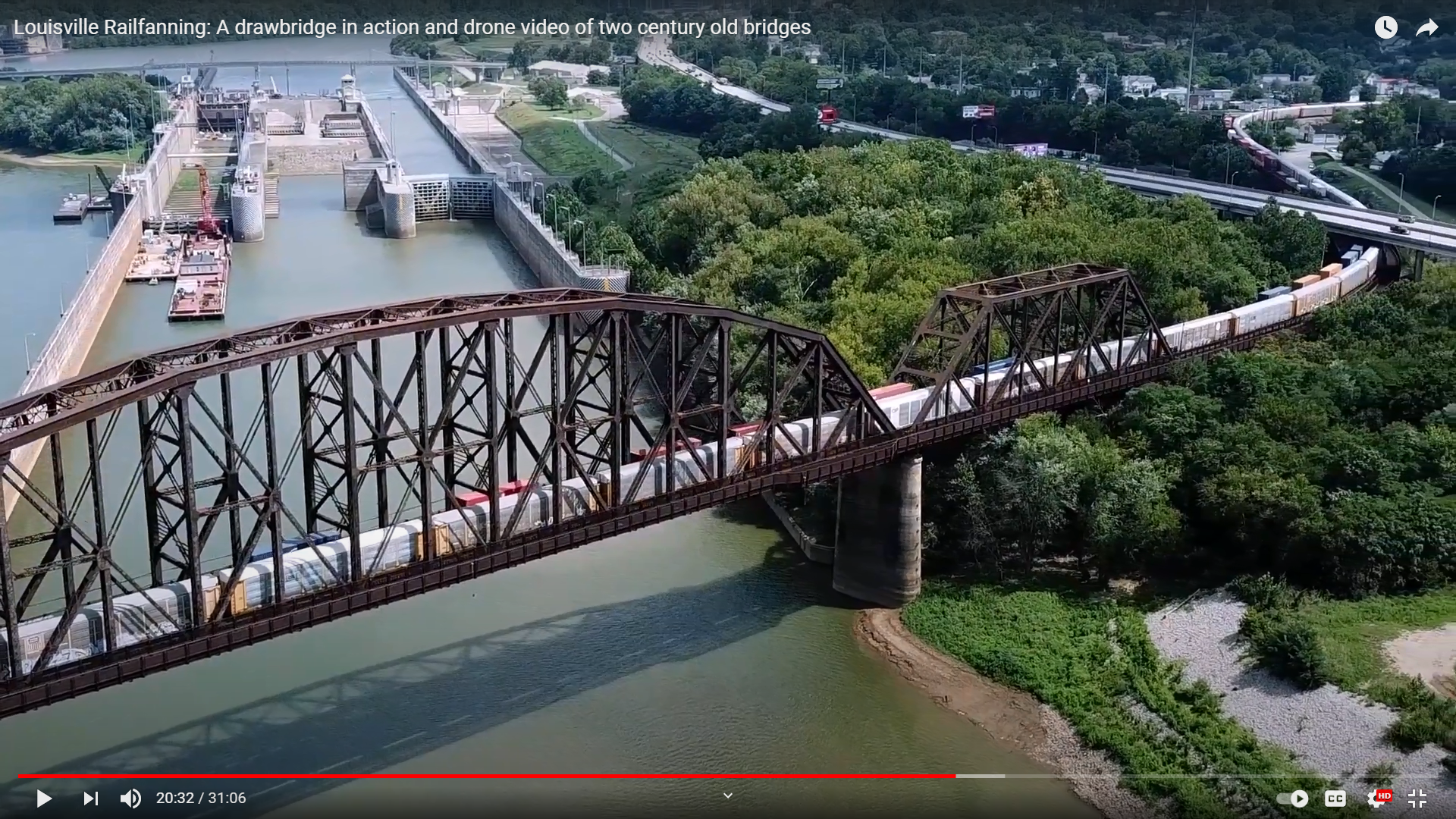

| Screenshot [The Kentucky & Indiana Bridge is in the foreground] |
In 2006, 55% of the tonnage was coal. [huffwd] So all of the new construction for improved capacity will probably be white elephants since coal tonnage is being replaced by cheap natural gas and renewable energy.
According to the Army Corps of Engineers, in 2006 the total commercial freight carried on the Ohio River was 270 million tons, with a net worth of almost $31 billion. 55% of this freight was coal. Other important commodities included aggregates, petroleum products, grain, iron/steel and chemicals. The Corps predicts freight traffic of 312 million tons by the year 2010 and 370 million tons by 2030. [huffwd]It would be interesting what the reality of the 2010 number turned out to be.
I found some interesting info concerning some locks, but it doesn't include McAlpine. Given that it includes #52, #53, Chickamauga, and Kentucky, maybe this report is about just "problem" locks.
I'm not the only one who thinks the USACE funding priorities seem stupid. This report says the Corps is proposing to add a second 1200' lock to the J. T. Myers Locks. But we have already seen that it is the least used lower Ohio River lock. The report also points out that the Corps has been ignoring that the coal traffic is going away. It continues to overestimate lock usage. I was not able to find the type of usage information that NY Times found by looking at USACE web site.
The Tennessee-Tombigbee Waterway is another example of the USACE overestimating usage and underestimating cost to get approval of a project. In this case $2 billion was spent on a project that continues to carry significantly less cargo than was predicted.
Having slept on it, I remembered that these locks have the highest lift on the Ohio River, 37'. In fact, "Lock 41’s lower lockgate had to be forty-eight feet high, double the height required at the other locks" [USACE, p215] That means it takes longer to fill and empty these locks compared to the other locks on the river. Thus they can handle fewer tows per hour. So maybe they needed the second lock to keep up with the traffic that the other locks can handle. Also, I think the second 1200' lock was built by making an 1920s 600' lock longer. So the gates, etc. were already built.
Flickr photo of the LST-325 approaching and a tow leaving the locks.
